AOR AR-3000A

Desktop HF/VHF/UHF Scanner / receiver

Specs Manuals (1) Reviews (0) Prices (5) Compare

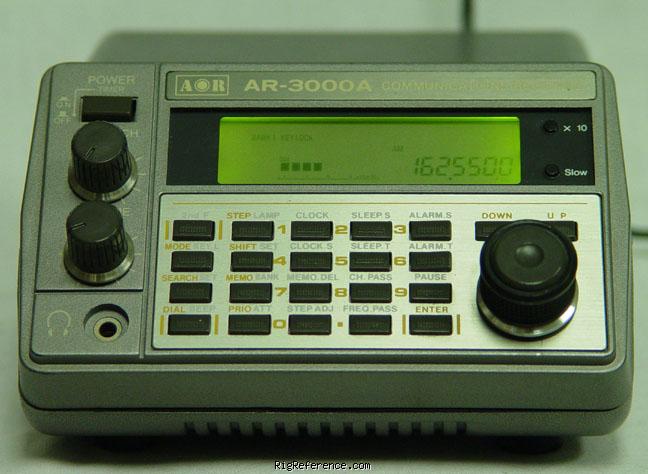

The AOR AR-3000A is a desktop HF/VHF/UHF scanner/receiver covering 0.1-2036 MHz with tuning steps of 50 Hz to 1000 kHz. It has 4 memory banks with 400 channels, requires 13.8V DC power and draws 300~500mA in receive mode. The AOR AR-3000A features an RS232 port and weighs 1.2 kg. Dimensions are 80 × 138 × 120 mm excluding projections.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: 50 Hz - 1000 kHz
Memories: 400 channels in 4 bank(s) @ 50 channels/second

Receiver

RX-range: 0.1-2036 MHz
Modulations: AM N-FM W-FM CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 300~500mA
TX: -

Physical

Dimensions (w×h×d): 138 × 80 × 120 mm (5.43 × 3.15 × 4.72 in) excluding projections
Weight: 1.20 kg (2.6 lbs)
Form factor: Base Station
Manufactured: Between 1989 and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: RS232 port
Accessories: -
RigReference ID: 2357
MPN: AOR-AR-003000A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: AOR AR-3000A Instruction Manual PDF - 1.96 MB, submitted by Gerd

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-3000A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the AOR AR-3000A in Good condition is around:

EUR 2,200
USD 192 ~ USD 326

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2021	EUR 500.00	Used / Okay	SWL_de
2019	USD 160.00	Used / Good	eBay
2018	USD 280.00	Used / Mint	eBay
2013	USD 299.95	Used / Good	universal-radio
2010	USD 282.76	Used / Good	eBay
