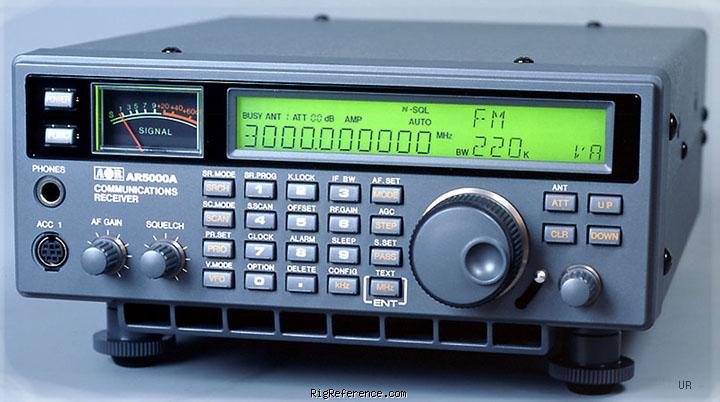

The AOR AR-5000 series has always offered exceptional spectrum coverage and advanced commercial features at a modest price. The new AR5000A models cover all the way from 10 kHz to 3 GHz (less cellular on blocked models), this DC to daylight radio won't miss much! Modes of reception include: AM, FM-N, FM-W, LSB, USB and CW. Six bandwidths are supplied (3, 6, 15, 30, 110 and 220 kHz.) and a slot for a 0.5 kHz filter is available. The triple conversion circuit and varactor tuned front-end provide excellent overload characteristics. Two thousand memories in 20 banks of 100 are featured. Each memory channel may hold: frequency, mode, band width, LPF, HPF, de-emphasis, tuning step, step-adjust, frequency off-set, AGC, attenuator, CTCSS tone, antenna selection, 8 character text tag and lockout!
Sophisticated scanning is available including channel pass, select scan and auto-store. Besides normal scanning (25 memories per second), there is also CyberScan (45 seconds) without channel tags. Scanning search (sometimes called sweep or spectrum scan) is also supported, allowing the radio to automatically tune between user-defined frequencies. The large front panel is very comfortable to use. Other features include: two antenna inputs (N and SO-239), antenna attenuator, keypad entry, computer control, audio filter, dial torque adjustment, mute, AGC, lock, RS232 port, squelch, analog S-meter, preamp, removable feet raisers, scanning (25/50 channels/second) and sweep. In FM mode the AGC may be set to Off or On. In other modes the AGC may be set to Off, Fast, Middle or Slow. This radio may be run from 12 VDC at 1 Amp (with optional DC3000 power cord) or via supplied 110 VAC adapter. There is a programmable 10.7 MHz IF output on the back to drive the optional SDU5600. There is also a programmable 10 MHz External Frequency Standard input jack [BNC] for laboratory applications.
- The AR-5000B versions are cellular blocked with the 824-849 / 869-894 MHz cellular gap and are available to anyone.
- The AR-5000U and AR-5000C versions are unblocked full coverage versions without the 824-849 / 869-894 MHz cellular gap.
- The AR-5000+3 versions have these additional three features: Noise Blanker, AFC and AM Synchronous Detection.
- The AR-5000AC version is the frequency coherent model and covers 10 kHz to 3.0 GHz continuously
this is a very good receiver .
and the good frequency rance . good for strong signal . good HF receiver and for ham Radio and satalite and week signaals
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-5000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the AOR AR-5000 is around:
These estimates are based on the following prices: (see all 2 prices)
