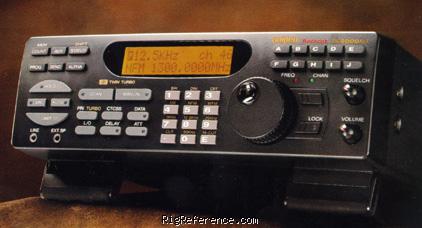

The Uniden-Bearcat BC9000XLT is a desktop base station scanner / receiver. It covers 25-550 / 760-1300 MHz and features a triple conversion superheterodyne receiver system. The radio has an audio output of 1.3 W, 20 memory banks and 500 memory channels. It weighs 1.82 kg and measures 85 × 267 × 190 mm. Features include auto-store, search lockout, attenuator, data skip, alpha-tagging, rotary control and tape recorder control. It operates on 13.8V DC or mains power.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 500 channels in 20 bank(s) @ 100 channels/second
Receiver
- RX-range
- 25-550 / 760-1300 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.3 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 267 × 85 × 190 mm (10.51 × 3.35 × 7.48 in)
- Weight
- 1.82 kg (4.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1995 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-store
Search lockout
Attenuator
Data skip
Alpha-tagging
Rotary control
Tape recorder control - Accessories
- -
- RigReference ID
- 2457
- MPN
- UNIDEN-BEARCAT-BC009000XLT
Manuals, diagrams and brochures
- Bearcat UBC9000XLT (manual) (1) PDF - 11.12 MB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC9000XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Uniden-Bearcat BC9000XLT in Good condition is around:
- EUR 278
- USD 111
- AUD 223 ~ AUD 312
These estimates are based on the following prices:
Links & tools
- Search YouTube for Uniden-Bearcat BC9000XLT videos
- Search Google for Uniden-Bearcat BC9000XLT information
- Search Google Images for Uniden-Bearcat BC9000XLT
- Search Wikipedia for Uniden-Bearcat BC9000XLT information
- Search the Boat Anchor Manual Archive (BAMA) for Uniden-Bearcat BC9000XLT for manuals and documents (using Google)
-
Find the Uniden-Bearcat BC9000XLT on Amazon
