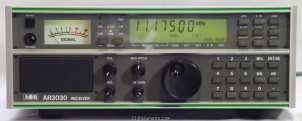

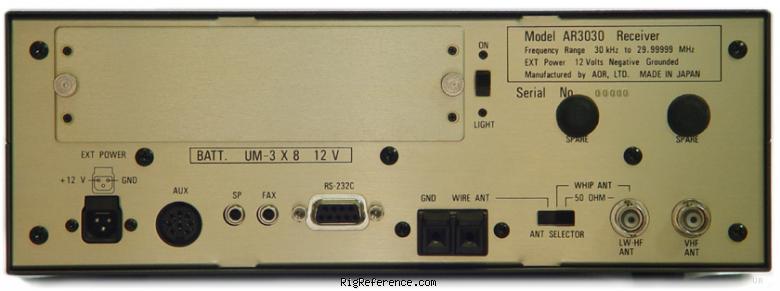

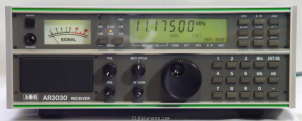

The AOR AR3030 advanced features include: DDS (Direct Digital Synthesizer) with patented NCO (Numeric Controlled Oscillator) that dramatically improves carrier to noise ratio. This all mode receiver tunes from 30 to 30 MHz. Ten Hz tuning accuracy insures precise tuning. A synchronous detector improves AM signals that are fading. The supplied 6 kHz filter is Collins and the 2.4 kHz is Murata. Manual uning is via the large, smooth main tuning knob. You may also enter desired frequencies directly via the keypad. A built in TCXO (Temperature Compensated Crystal Oscillator) provides 5 PPM stability. Other refinements include: AGC control with off position, large amber backlit LCD, analog S-meter, RF gain, Squelch, dual VFOs, RS-232 serial interface and 100 memories with scan. The AR3030 can also operate from eight AA cells stored internally. The rear panel has a BNC antenna jack. External power supply (12 VDC @ 1A) is the AOR AA3030.

General characteristics

HAM bands
?
Frequency stability
±5 ppm. -5° to 130° F.
Tuning steps
0.001 kHz
Memories
100 channels in 1 bank(s)

Receiver

RX-range
0.03-30 MHz
Modulations
AM   AM-sync   FM   CW   USB   LSB
Sensitivity
10 dB S+ N/N
SSB: < 5µV 540-1800 kHz
SSB: < 0.5µV 1.8-30 MHz
AM: <15µV 540-1800 kHz
AM: <1.5µV 1.8-30 MHz
Selectivity
2.4 / 6 kHz
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 56.655 MHz
2nd: 455 kHz
Image rejection
>70 dB
Audio output
1.8 Watts 8 Ohms

Connections

Antenna
BNC
Impedance
50 / 450Ω
Other
-

Electrical

Power requirements
13.8V DC or 8×AA cells
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
250 × 88 × 240 mm (9.84 × 3.46 × 9.45 in)
Weight
2.20 kg (4.9 lbs)
Form factor
Base Station
Manufactured
Between 1994 and 1997 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2377
MPN
AOR-AR-003030

Manuals, diagrams and brochures

AOR AR3030 Service Manual PDF - 799.9 kB, submitted by Yurij

Upload relevant documents

Reviews & stories

Rating Title Submitted
AOR Ar 3030 5 years ago by G0CMF

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-3030. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-3030 is around:

  • EUR 497.00
  • USD 488.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 EUR 500.00 Used / Good eBay
2010 USD 1225.00 Used / Good eBay
