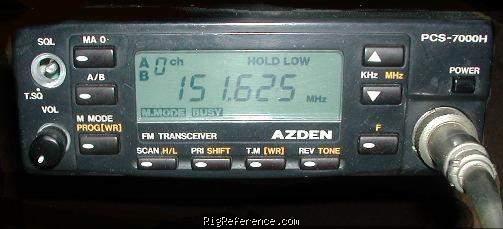

The Azden PCS-7000H is a mobile VHF transceiver. It covers 118-174 MHz for receive and 140-150 MHz for transmit. The radio has an RF output of High: 50 W, Low: 10 W and features CTCSS encoder. It offers 2 memory banks with a total of 20 channels. Power requirements are 13.8V DC. Current drain is Max 0.6 A in receive mode and Max 10 A in transmit mode. The transceiver weighs 1.36 kg and measures 51 × 138 × 140 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 2 bank(s)
Receiver
- RX-range
- 118-174 MHz
- Modulations
- AM FM
- Sensitivity
- AM: <1 µV (10 dB S/N)
FM: <0.19 µV (12 dB SINAD) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140-150 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 0.6 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 138 × 51 × 140 mm (5.43 × 2.01 × 5.51 in)
- Weight
- 1.36 kg (3.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS encoder
- Accessories
- -
- RigReference ID
- 2431
- MPN
- AZDEN-PCS-007000H
Manuals, diagrams and brochures
- Azden Pcs7000H Manual PDF - 880.9 kB, submitted by Mark Andrews
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden PCS-7000H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Azden PCS-7000H in Good condition is around:
- USD 45 ~ USD 80
These estimates are based on the following prices:
