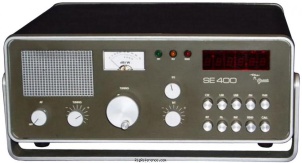

Braun SE-400 dig

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

144-146 MHz

Modulations

FM   CW   SSB

Sensitivity

FM: 0.15 µV (10 dB)
SSB: 0.06 µV (10 dB)

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

10.7 MHz

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

FM   CW   SSB

RF-output

Max 10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

Max 1.4 A

TX

Max 2.9 A

Physical

Dimensions (w×h×d)

307 × 117 × 260 mm (12.09 × 4.61 × 10.24 in)

Weight

7.30 kg (16.1 lbs)

Form factor

Base Station

Manufactured

Between 197x and 197x in West Germany

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2482

MPN

BRAUN-SE-000400-DIG
