Braun SE-400 dig

Desktop VHF Transceiver

Specs Manuals (0) Reviews (1) Prices (0) Compare

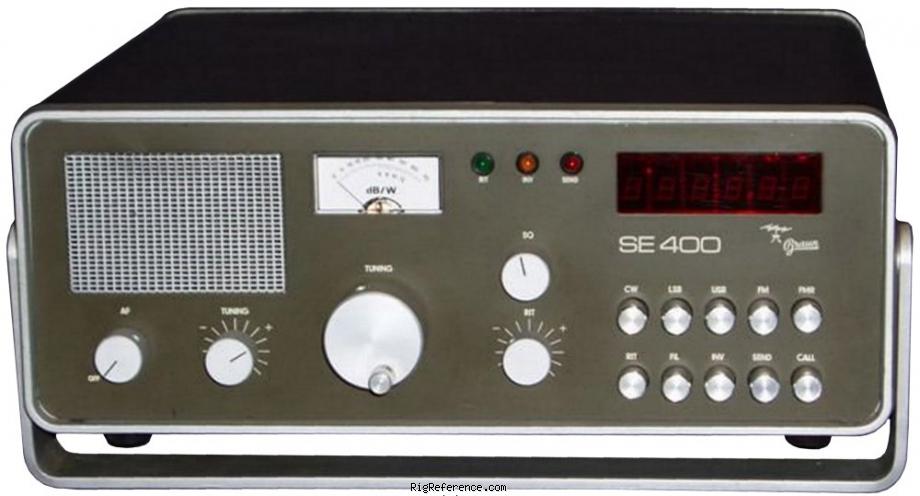

The Braun SE-400 dig is a desktop VHF transceiver. It covers 144-146 MHz for both receive and transmit frequencies with a maximum RF output of 10 W. The receiver system uses single conversion superheterodyne with an IF frequency of 10.7 MHz. It requires 13.8V DC or mains power. Dimensions are 117 × 307 × 260 mm and it weighs 7.3 kg. Current drain is Max 1.4 A in receive mode and Max 2.9 A in transmit mode.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: FM CW SSB
Sensitivity: FM: 0.15 µV (10 dB)
SSB: 0.06 µV (10 dB)
Selectivity: ?
Filters: ?
Receiver system: Single conversion superheterodyne
IF-frequencies: 10.7 MHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM CW SSB
RF-output: Max 10 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: Max 1.4 A
TX: Max 2.9 A

Physical

Dimensions (w×h×d): 307 × 117 × 260 mm (12.09 × 4.61 × 10.24 in)
Weight: 7.30 kg (16.1 lbs)
Form factor: Base Station
Manufactured: Between 197x and 197x in West Germany

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2482
MPN: BRAUN-SE-000400-DIG
