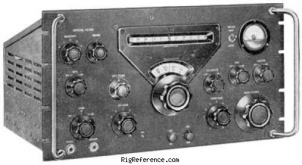

General-coverage receiver covering 0.5 to 30.5 MHz in 30 bands, AM/CW/MCW. Designed for 19" rack mount. Requires external speaker. No bandwidth switch under BFO-Pitch control, could be upgraded to Collins 51J-4 with 354A-1 Collins Mechanical Filter Conversion kit.
Military designation Collins R-388/URR. Versions built for the Navy were tropicalized and had nonmagnetic cabinets.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- Within 300 Hz if the nearest 100 kHz calibration point is used to adjust the fiducial
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.54-30.5 MHz in 30 bands
- Modulations
- AM CW
- Sensitivity
- Band 1: Less than 15 µV for 10 dB S/N
Bands 2 to 30: Less than 5 µV for 10 dB S/N - Selectivity
- 1 / 3 / 6 / 10 kHz
- Filters
- ?
- Receiver system
- Triple Conversion Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- External 270G-3 Speaker, 2.5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (110-120 / 220-240 V AC)
- Current drain RX
- 85 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 536 × 317 × 333 mm (21.10 × 12.48 × 13.11 in)
- Weight
- 19.50 kg (43.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1952 and 1956 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2506
- MPN
- COLLINS-000051J-3
Manuals, diagrams and brochures
- Collins-51J 3 SM PDF - 3.72 MB, submitted by Berend
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 51J-3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Collins 51J-3 in Good condition is around:
- USD 657 ~ USD 667
These estimates are based on the following prices:
