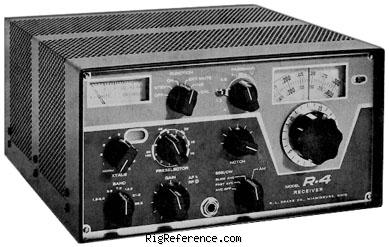

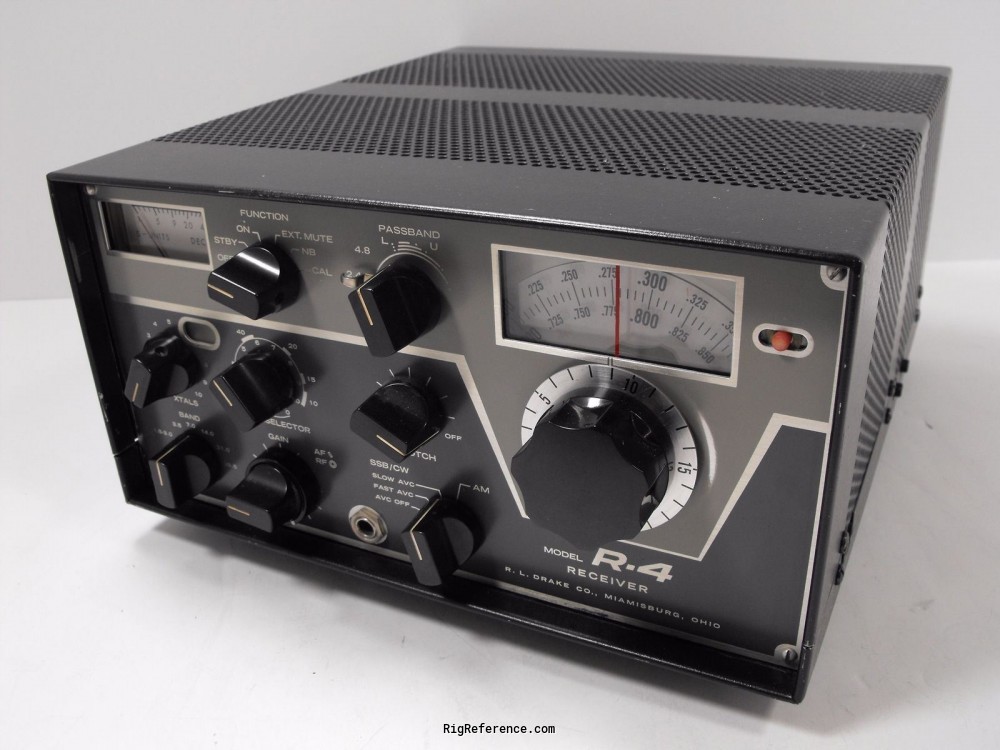

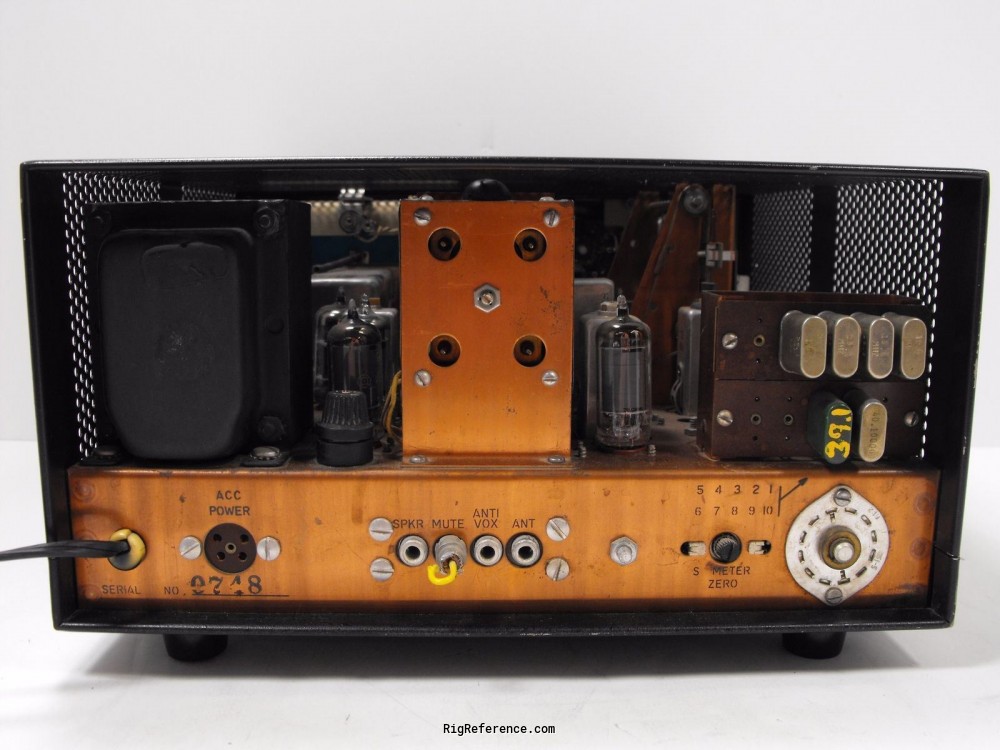

The R.L. Drake Company produced the R-4 as an advancement over the famous 2C model. The R-4 covers: 3.5-4, 7-7.5, 14-14.5, 21-21.5 and 28.5-29 MHz plus ten 500 kHz crystal positions (with optional crystals). Modes of reception include: SSB, CW and AM. The dial accuracy is and impressive ±1 kHz. Features include: PBT, Line out, Crystal Calibrator (100 kHz), RF Gain, Mute Jack, Speaker Jack, Anti-Vox Jack and Dial Lamp. This radio requires an external speaker. The R-4 matches the T-4 or T-4X transmitters.
Do you know this rig? Tell us something about it!
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake R-4. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Drake R-4 is around:
These estimates are based on the following prices:
