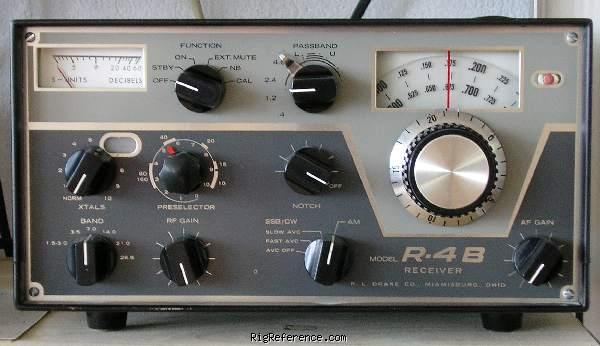

The R.L. Drake Company produced the R-4B as a refinement of their previous popular R-4 and R-4A models. The R-4B covers: 3.5-4, 7-7.5, 14-14.5, 21-21.5 and 28.5-29 MHz plus ten additional 500 kHz crystal positions (with optional crystals). Modes of reception include: SSB, CW and AM. The dial accuracy is and impressive ±1 kHz. Features include: PBT, Line out, Crystal Calibrator (25 kHz), RF Gain, Mute Jack, Speaker Jack, Anti-Vox Jack and Dial Lamp. This radio requires an external speaker.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 160-10 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Proprietary
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 60W
- TX
- -
Physical
- Dimensions (w×h×d)
- 273 × 140 × 297 mm (10.75 × 5.51 × 11.69 in)
- Weight
- 7.50 kg (16.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1967 and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2579
- MPN
- DRAKE-R-000004B
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake R-4B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Drake R-4B is around:
- USD 41.00
