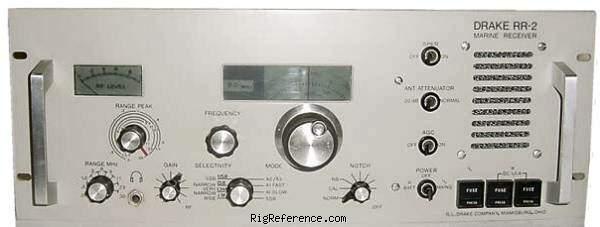

The Drake RR-2 receiver is a commercial grade communications receiver which employs solid state devices and circuity. It offers general coverage from 150 kHz to 30 MHz. The received frequency is indicated by a two-speed dial that has accurate calibrations every 1 kHz. Modular construction on easily accessible printed circuit boards is used throughout the RR-2. The use of dual gate MOS-FET transistors in the RR-2 circuity contribute to the superior inter-modulation, AGC, wide dynamic range and overload performance.
Basically a Drake RR-1 but with continuous coverage.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 0.15-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 482 × 178 × 279 mm (18.98 × 7.01 × 10.98 in)
- Weight
- 6.35 kg (14.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2588
- MPN
- DRAKE-RR-000002
