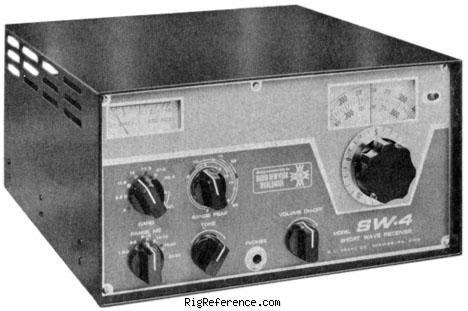

The Drake SW4 blends tube and solid-state technology to provide an easy-to-use high performance shortwave broadcast receiver. Supplied coverage includes: 5.95-6.55, 9.45-10.05, 11.45-12.05, 14.95-15.55, 17.45-18.05, 21.45-22.05 and 25.45-26.05 MHz. Unfortunately none of the ranges coincides with nowadays amateur bands. AM mode only (no SSB/CW). Dial accuracy is ±5 kHz. This radio has a range switch plus three 500 kHz auxiliary crystal sockets
Three optional 500 kHz ranges between 1,5-30 MHz with the exception of 5.0-6.0 MHz.
General characteristics
- HAM bands
- None
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 5.95-6.55 / 9.45-10.05 / 11.45-12.05 / 14.95-15.55 / 17.45-18.05 / 21.45-22.05 / 25.45-26.05 MHz
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Transistor/tube hybrid.
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- External speaker required
Connections
- Antenna
- -
- Impedance
- 52Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 274 × 140 × 295 mm (10.79 × 5.51 × 11.61 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1966 and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- S-meter
1/4 inch headphone jack - Accessories
- MS-4 external speaker
- RigReference ID
- 2594
- MPN
- DRAKE-SW000004
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake SW4. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Drake SW4 in Good condition is around:
- USD 236 ~ USD 440
These estimates are based on the following prices:
