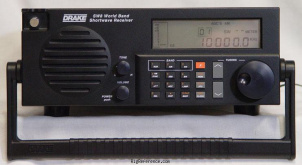

Drake SW8 Desktop HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Drake SW8 is a portable communications receiver covering 100 to 30000 kHz in AM, USB and LSB modes. Quality reception of the AM broadcast band and all of shortwave is assured. Drake elected to include the FM broadcast band in the SW8 (87 -108 MHz). The extra heavy, forward facing speaker, along with a tone control, combine to offer pleasing fidelity. As a bonus, the VHF aeronautical band is also featured (118 - 137 MHz). Enjoy listening to commercial aircraft over-head, or even control tower transmissions if you live near an airport.

The impressive backlit LCD panel provides all the operational data you need to navigate this impressive receiver. Frequency display resolution is to 100 Hz on AM, shortwave and aircraft bands. The SW8 is a full fledged communications receiver, but it is also a true portable. The full size front handle makes it easy to carry. Please note that this handle can be conveniently removed by the user for stationary operation. The SW8 holds six D cells, and a pivot point 41 inch telescopic whip extends from the front for fully independent field operation. A 1/8th inch headphone jack is provided. Tuning is easy via keypad entry, manual tuning or memories.

For the shortwave and medium wave broadcast bands, a selectable sideband synchronous detector (SYNC) improves reception by reducing distortion due to fading signals. Other aids include: slow or fast AGC, RF attenuator and tone controls. Three IF bandwidths are supplied (6,4 and 2.3 kHz). Two independent clocks provide dual time zone selection and a 2 event timer turns the radio on at a prescribed time. Seventy non-volatile memories store: frequency, mode, bandwidth, AGC setting, RF attenuator and synchronous detector on/off. Memory channels may be accessed manually or through "time scan" with each channel monitored for 5 seconds. Keypad entry provides instant access to any frequency.

The rear panel of the radio includes a PL259-type antenna jack or wire inputs for shortwave. Spring terminals are also provided for an external FM/AIR antenna. Record output, and external speaker (4 - 8 ohm) jacks are also featured.

Frequency range

RX-range
0.1-30 / 87-108 / 118-137 MHz
TX-range
-
HAM bands
-
Stability
± 10 ppm. 0° to 50° C.
Tuning steps
-
Filters
-

Receiver

Modulations
AM   AM-sync   W-FM   USB   LSB
Sensitivity
SSB (10 dB S/N): < 0.5µV 0.5-30 MHz
AM (10 dB S/N): < 2.0µV 0.5-30 MHz
FM (20 dB S/N): < 4.0µV 87-108 MHz
FM (20 dB S/N): < 4.0µV 118-137 MHz
Selectivity
AM: 6.0 kHz @ -6dB
AM: 4.0 kHz @ -6dB
LSB/USB: 2.3 kHz @ -6dB
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
> 60 dB .5-30 MHz > 50 dB 87-108 MHz > 60 dB 118-137 MHz
Audio output
2 Watts, 4 Ohms. < 5% distortion

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50 / 300 / 500Ω

Electrical

Power requirements
7-10V DC external or 6×LR20 internal
Current drain RX
1 A max
TX
-

Physical

Dimensions (w×h×d)
292 × 133 × 330 mm (11.50 × 5.24 × 12.99 in)
Weight
4.50 kg (9.9 lbs)
Form factor
Base Station
Manufactured
Between 1994 and 2000 in Ohio, U.S.A.
MPN

Other features

Memories
70 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Drake SW8. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Drake SW8 might be around:

  • USD 246.00
Price Condition Year User
USD 380.00 Used / Mint 2010 eBay
USD 299.95 Used / Good 2013 universal-radio
