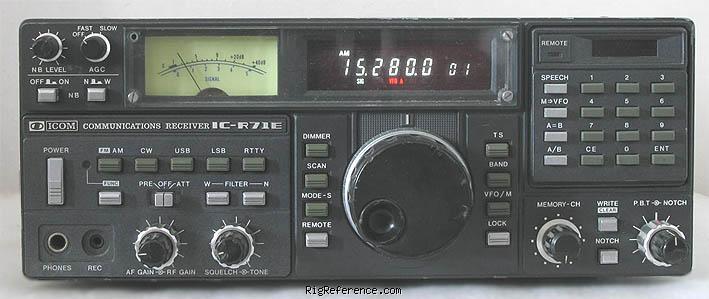

European version of the IC-R71

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
32 channels in 1 bank(s)

Receiver

RX-range
0.1-30 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
AM (10 dB S+N/N)
0.1-1.6 MHz: 3 µV
1.6-30 MHz: <0.5 µV
SSB/CW/RTTY (10 dB S+N/N)
0.1-1.6 MHz: 1 µV
1.6-30 MHz: <0.15 µV
FM (10 dB SINAD)
1.6-30 MHz: <0.3 µV
Selectivity
AM: 2.7-6 kHz (-6 dB), 15 kHz (-50 dB)
SSB/CW/RTTY: 0.5-2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW-N/RTTY-N: 500 Hz (-6 dB), 1.5 kHz (-60 dB)
FM: 15 kHz (-6 dB), 25 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
>60 dB
Audio output
?

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (13.8V DC option)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
286 × 111 × 276 mm (11.26 × 4.37 × 10.87 in)
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 1984 and 1996

Other features

Usage
Amateur / Ham radio operators
Features + options
PBT
Accessories
-
RigReference ID
3224
MPN
ICOM-IC-R000071E
