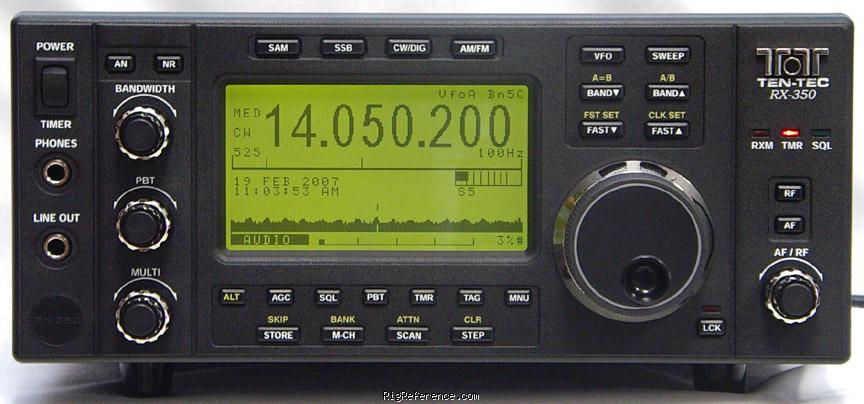

The new Ten-Tec RX-350 brings you the world of IF level digital signal processing in a powerful desktop SWL receiver unlike anything that has come before it. What benefit does IF-DSP provide the shortwave listener? Cleaner signal readability. Plus DSP can eliminate heterodynes and limit spurious broadband noise instantly by pushing buttons. Take advantage of the wide variety of DSP filter choices built-in to the receiver to suppress undesired adjacent interference. Use these same filters to tailor the response of the receiver to your needs - from a wide 8 kHz for pleasing SAM or AM audio to a tiny 300 Hz for digging weak CW and digital mode signals out of the noise. There are 34 of them built-in. That's right, 34, not 2 or 3 built-in, and not sold as expensive options! IF-DSP also allows Flash ROM updating of your receiver with the latest features and functions.
Original price 2001 in the US: $1199.00
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ± 90 Hz (at 25° C. for one year)
- Tuning steps
- ?
- Memories
- 1024 channels in 8 bank(s)
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM AM-sync FM CW USB LSB DSB
- Sensitivity
- <.35 µV (10 dB S+N/N) SSB @ 3 kHz
- Selectivity
- 34 bandwidths selectable from 0.3 kHz to 8 kHz
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 45 MHz
2nd: 455 kHz
3rd: 12 kHz - Image rejection
- >60 dB typical
- Audio output
- 1 watt 4 Ohm
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50/450Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.5 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 308 × 127 × 330 mm (12.13 × 5.00 × 12.99 in)
- Weight
- 5.45 kg (12.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2001 and 200x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
- Accessories
- -
- RigReference ID
- 4183
- MPN
- TEN-TEC-RX-000350
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec RX-350. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Ten-Tec RX-350 is around:
- USD 44.00
These estimates are based on the following prices:
