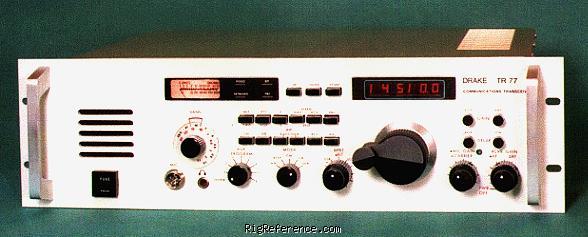

The Drake TR-77 is a HF transceiver. It covers 0.01-30 MHz in receive and 160-10 m in transmit. The maximum RF output is 150 W PEP. Power requirements are 13.8V DC. Dimensions are 117 × 346 × 318 mm. Current drain is Max 2 A in receive and Max 15 A in transmit.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.01-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m
- Modulations
- CW SSB
- RF-output
- 150 W (PEP)
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 2 A
- TX
- Max 15 A
Physical
- Dimensions (w×h×d)
- 346 × 117 × 318 mm (13.62 × 4.61 × 12.52 in)
- Weight
- 6.35 kg (14.0 lbs)
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2609
- MPN
- DRAKE-TR-000077
Manuals, diagrams and brochures
-
No documents available for this particular model.
