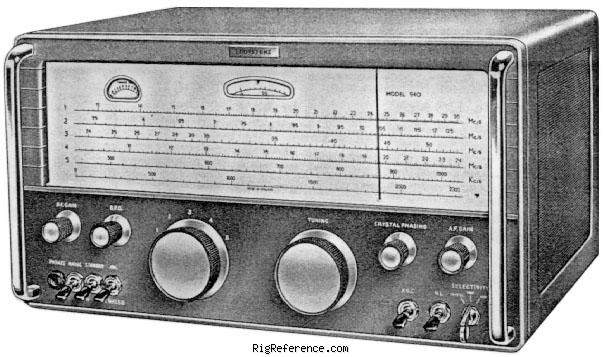

One of Eddystone's last tube receivers. Ranges: .48-1.03, 1.03-2.4, 2.4-5.4, 5.4-12.7 and 12.7-30 MHz. With flywheel tuning. Two tone gray finish.

Model 940/RM is a rack mount version. Model 940/1 has one fixed crystal position. Model 940/2 is configured for vehicular use. Model 940/3 produced for Her Majesty's Coast Guard. Eddystone's first solid state receiver was the Eddystone 960 which had 19 semiconductors and physically resembled the 940. The Eddystone 960 operated from 8 D cells or 12 V DC. The Eddystone 962 is similar to the 960, but with 8 fixed crystal positions.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.48-30 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion, 13 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
425 × 222 × 381 mm (16.73 × 8.74 × 15.00 in)
Weight
19.50 kg (43.0 lbs)
Form factor
Base Station
Manufactured
Between 1962 and 1969 in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2624
MPN
EDDYSTONE-000940
