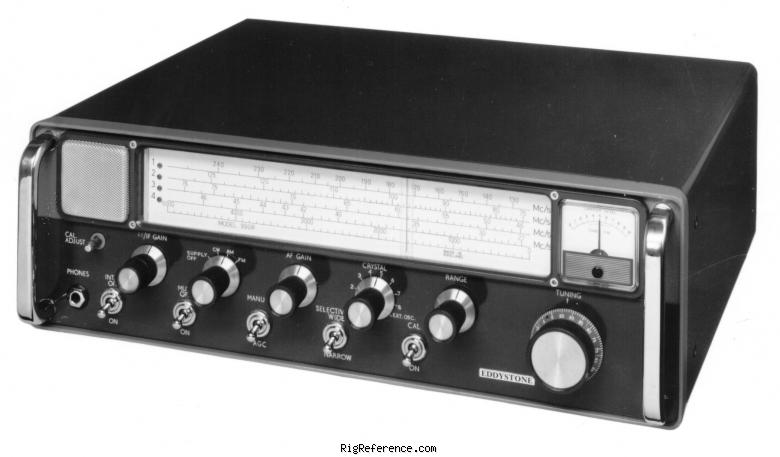

Eddystone 990R

General characteristics

HAM bands

?

Frequency stability

1 ppm per °C change in ambient temperature. 0.1 ppm per °C with crystal control.

Tuning steps

?

Memories

?

Receiver

RX-range

27-240 MHz

Modulations

AM   FM   CW

Sensitivity

5 µV (100 dB S/N)

Selectivity

?

Filters

30 / 200 kHz

Receiver system

Single conversion

IF-frequencies

10.7 MHz

Image rejection

?

Audio output

500 mW @ 10% THD

Connections

Antenna

BNC

Impedance

75Ω

Other

-

Electrical

Power requirements

Mains or 12V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

426 × 154 × 342 mm (16.77 × 6.06 × 13.46 in) desktop model

Weight

8.80 kg (19.4 lbs) desktop model

Form factor

Base Station

Manufactured

Between 1967 and 19xx in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2625

MPN

EDDYSTONE-000990R

Manuals, diagrams and brochures

Eddystone 990R Manual PDF - Unknown size, submitted by RigReference
