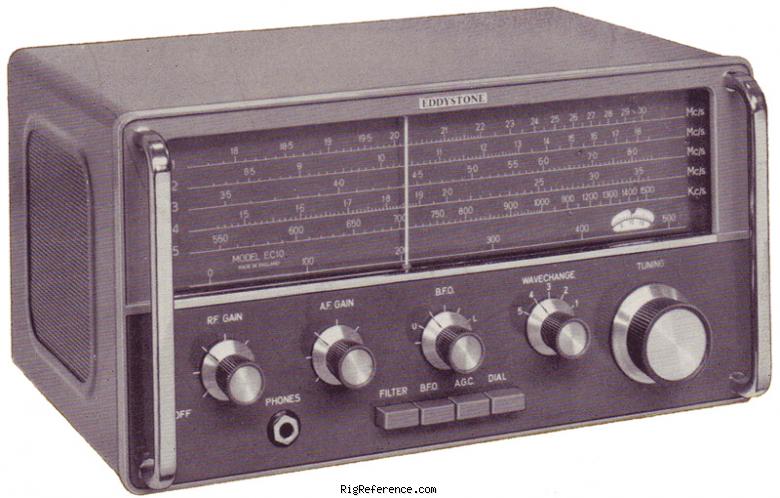

Eddystone EC10

Desktop Shortwave receiver

Specs Manuals (2) Reviews (0) Prices (0) Compare

The Eddystone EC10 is a desktop shortwave receiver covering 0.55-30 MHz in 5 bands. It features filters of 5 kHz (6 dB) and 25 kHz (40 dB). The IF frequency is 465 kHz. Audio output is 1 W. The receiver weighs 5.8 kg less batteries. Current drain in receive mode is 36-180 mA. Dimensions are 162 × 317 × 203 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.55-30 MHz in 5 bands
Modulations: AM CW SSB
Sensitivity: better than 5 µV (15 µV for 550-1500 kHz)
Selectivity: ?
Filters: 5 kHz (6 dB) 25 kHz (40 dB)
Receiver system: ?
IF-frequencies: 465 kHz
Image rejection: ?
Audio output: 1 W

Connections

Antenna: SO-239
Impedance: 75/400Ω
Other: -

Electrical

Power requirements: Mains, 12V DC or 6×U2 cells
Current drain RX: 36-180 mA
TX: -

Physical

Dimensions (w×h×d): 317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
Weight: 5.80 kg (12.8 lbs) less batteries
Form factor: Base Station
Manufactured: Between 1967 and 196x in Great Britain

Other features

Usage: Marine / Navy
Features + options: -
Accessories: -
RigReference ID: 2628
MPN: EDDYSTONE-EC000010

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone EC-10 Brochure PDF - Unknown size, submitted by RigReference
: Eddystone Ec10 HF Reciever Service Manual PDF - 835.8 kB, submitted by Berend

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone EC10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Eddystone EC10 is around:

USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.
