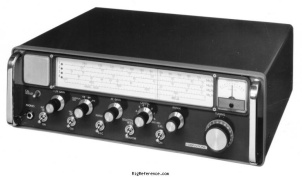

The Eddystone 990R is a desktop VHF receiver covering 27-240 MHz. It features a single conversion receiver system with an IF frequency of 10.7 MHz and filters of 30 / 200 kHz. The frequency stability is 1 ppm per °C change in ambient temperature, or 0.1 ppm per °C with crystal control. Audio output is 500 mW @ 10% THD. It weighs 8.8 kg and measures 154 × 426 × 342 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- 1 ppm per °C change in ambient temperature. 0.1 ppm per °C with crystal control.
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 27-240 MHz
- Modulations
- AM FM CW
- Sensitivity
- 5 µV (100 dB S/N)
- Selectivity
- ?
- Filters
- 30 / 200 kHz
- Receiver system
- Single conversion
- IF-frequencies
- 10.7 MHz
- Image rejection
- ?
- Audio output
- 500 mW @ 10% THD
Connections
- Antenna
- BNC
- Impedance
- 75Ω
- Other
- -
Electrical
- Power requirements
- Mains or 12V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 426 × 154 × 342 mm (16.77 × 6.06 × 13.46 in) desktop model
- Weight
- 8.80 kg (19.4 lbs) desktop model
- Form factor
- Base Station
- Manufactured
- Between 1967 and 19xx in Great Britain
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2625
- MPN
- EDDYSTONE-000990R
Manuals, diagrams and brochures
- Eddystone 990R Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone 990R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Eddystone 990R is around:
- USD 159 ~ USD 295
This estimate is based on similar equipment and may not reflect the exact value of this model.
