Receivers in the EC10A2 Series are primarily intended for use on small sea-going vessels but are equally suited to many other applications in the maritime field. Full coverage of the HF band from 1.5 to 30 MHz is available, together with the 300-550 kHz Marine Band. Instant selection of the International Distress and Calling Channel (2182 kHz) is provided by a built-in crystal controlled converter unit.
Three version of the EC10A2 receiver exist, one for bench-monitoring and two for installation in standard 19-in racking. Type designations are as follows:

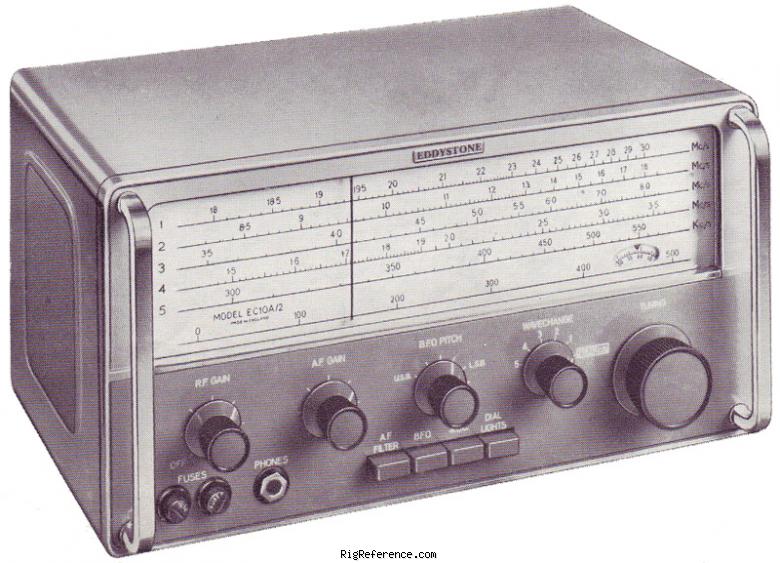

EC10A2/1: Standard bench-monitoring with integral cabinet loudspeaker.
EC10A2/2: Standard rack-mounting version with single panel-mounted loudspeaker.

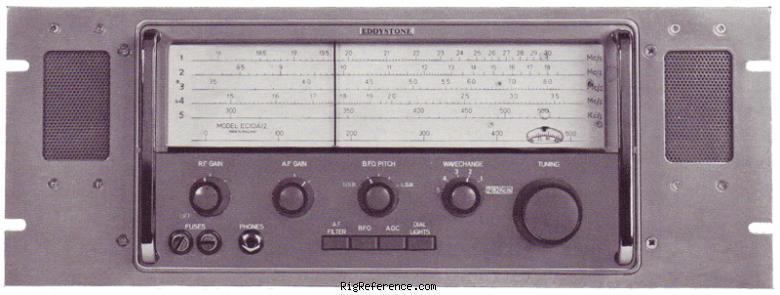

EC10A2/3: Special rack-mounting version with two panel-mounted loudspeakers, one of which is available for use with ship intercom systems.
General characteristics
- HAM bands
- ?
- Frequency stability
- 10 ppm per °C (2 ppm per °C at 2182 kHz)
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.3-0.55 / 1.5-30 MHz in 5 bands + 2182 kHz
- Modulations
- AM CW SSB
- Sensitivity
- 300-550 kHz
15 µV for 15 dB S/N
1.5-30 MHz
5 µV for 15 dB S/N - Selectivity
- 7 kHz (-6 dB)
30 kHz (-40 dB) - Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- 720 kHz
- Image rejection
- 85 dB (65 dB for 0.3-0.55 MHz)
- Audio output
- 1 W @ 10% THD
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12 or 24V DC
- Current drain RX
- Max 250 mA @ 13.8 VDC
- TX
- -
Physical
- Dimensions (w×h×d)
- 317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
- Weight
- 6.30 kg (13.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1970 and 197x in Great Britain
Other features
- Usage
- Marine / Navy
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2629
- MPN
- EDDYSTONE-EC000010A2
