Receivers in the EC10A2 Series are primarily intended for use on small sea-going vessels but are equally suited to many other applications in the maritime field. Full coverage of the HF band from 1.5 to 30 MHz is available, together with the 300-550 kHz Marine Band. Instant selection of the International Distress and Calling Channel (2182 kHz) is provided by a built-in crystal controlled converter unit.

Three version of the EC10A2 receiver exist, one for bench-monitoring and two for installation in standard 19-in racking. Type designations are as follows:

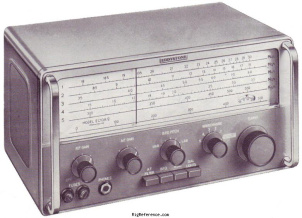

EC10A2/1: Standard bench-monitoring with integral cabinet loudspeaker.
EC10A2/2: Standard rack-mounting version with single panel-mounted loudspeaker.
EC10A2/3: Special rack-mounting version with two panel-mounted loudspeakers, one of which is available for use with ship intercom systems.

General characteristics

HAM bands
?
Frequency stability
10 ppm per °C (2 ppm per °C at 2182 kHz)
Tuning steps
?
Memories
?

Receiver

RX-range
0.3-0.55 / 1.5-30 MHz in 5 bands + 2182 kHz
Modulations
AM   CW   SSB
Sensitivity
300-550 kHz
15 µV for 15 dB S/N

1.5-30 MHz
5 µV for 15 dB S/N
Selectivity
7 kHz (-6 dB)
30 kHz (-40 dB)
Filters
?
Receiver system
Single conversion
IF-frequencies
720 kHz
Image rejection
85 dB (65 dB for 0.3-0.55 MHz)
Audio output
1 W @ 10% THD

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
12 or 24V DC
Current drain RX
Max 250 mA @ 13.8 VDC
TX
-

Physical

Dimensions (w×h×d)
317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
Weight
6.30 kg (13.9 lbs)
Form factor
Base Station
Manufactured
Between 1970 and 197x in Great Britain

Other features

Usage
Marine / Navy
Features + options
-
Accessories
-
RigReference ID
2629
MPN
EDDYSTONE-EC000010A2

Manuals, diagrams and brochures

Eddystone EC10A2 Brochure PDF - Unknown size, submitted by RigReference
