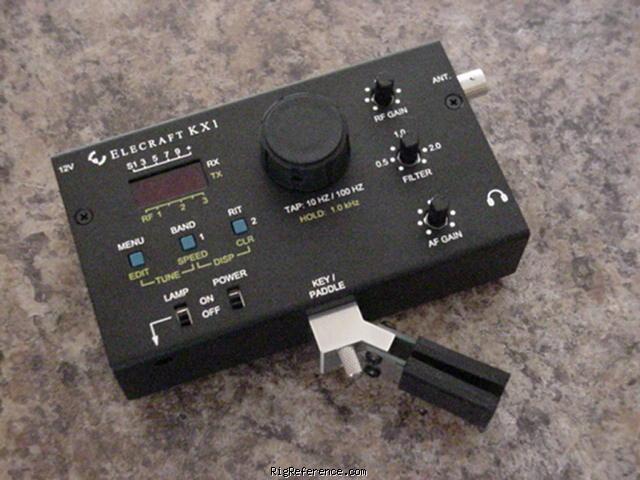

Elecraft KX1

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

5-8.5 / 12-16.5 MHz

Modulations

CW   SSB

Sensitivity

0.2 µV (10 dB S+N/N)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

20 & 40 m

Modulations

CW

RF-output

1-4 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

6.5-14V DC

Current drain RX

34-45 mA

TX

300-700 mA

Physical

Dimensions (w×h×d)

135 × 30 × 80 mm (5.31 × 1.18 × 3.15 in)

Weight

250 gr (8.8 oz) without options

Form factor

Portable

Manufactured

Between 2003 and 2017 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Built-in QSK keyer.

Accessories

-

RigReference ID

2650

MPN

ELECRAFT-KX000001

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Elecraft KX1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Elecraft KX1 in Good condition is around:

• EUR 300
• USD 210
