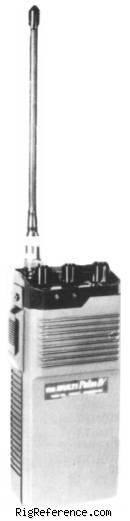

FDK Multi-Palm IV

Handheld UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The FDK Multi-Palm IV is a handheld UHF transceiver. It covers 430-440 MHz for both receive and transmit with an RF output of 1 W. It features 1 memory bank with 6 channels and uses an internal speaker for audio output. The radio requires 13.8 V DC power and weighs 470 gr with batteries included.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: XTAL presets
Memories: 6 channels in 1 bank(s)

Receiver

RX-range: 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 430-440 MHz
Modulations: FM
RF-output: 1 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: 470 gr (1.0 lbs) batteries included
Form factor: Handheld
Manufactured: Between 1980 and 198x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2670
MPN: FDK-MULTI-PALM-IV
