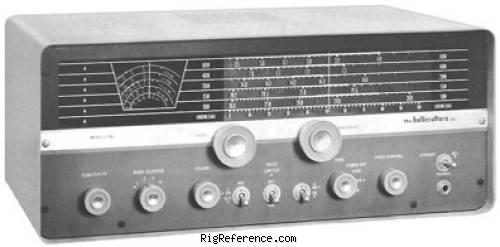

Hallicrafters S-108

Desktop HF/VHF Receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Ranges: .538-1.6, 1.55-4.6, 4.6-13 and 12-34 MHz. Bandspread: 3.5-4, 7-7.3, 14-14.4, 20.1-21.5 and 26-30 MHz. Note that the bandspread ranges are on the long horizontal scale. The speaker is built into the top panel, facing up. Gray metal cabinet.
There was a choice of matching external speakers: R-46B, R-47 or R-48 to replace the built-in speaker.

Original price in 1959: USD 130~150.

Frequency range

RX-range
0.54-34 MHz
TX-range
-
HAM bands
80m  40m  20m  15m  11m (CB)  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW
Sensitivity
?
Selectivity
?
Receiver system
Single conversion (8 tubes)
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
?

Electrical

Power requirements
Mains (105-125 V AC, 50/60 Hz)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
476 × 216 × 259 mm (18.74 × 8.50 × 10.20 in)
Weight
14.50 kg (32.0 lbs)
Form factor
Base Station
Manufactured
Between 1959 and 1963 in USA
MPN
HALLICRAFTERS-S-000108

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
•¼" Head. Jack • AVC ON/OFF • BFO • Bandspread • RF Gain • ANL • Mute Line • Speaker Terminals • Tone • Standby • Speaker
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Hallicrafters S-108 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters S-108. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters S-108 is around:

  • USD 74.00 ~ USD 199.00
Year Historic price Condition Submitted by
2019 USD 103.60 Used / Poor eBay
2019 USD 74.99 Used / Okay eBay
2019 USD 199.99 Used / Mint eBay
1959 USD 140.00 New / Mint RigReference
