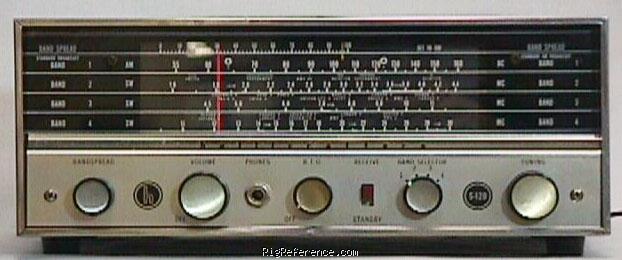

The Hallicrafters S-120 general coverage receiver tunes from 540 to 30000 kHz in four bands. Ranges: .55-1.6, 1.6-4.4, 4.5-11 and 11-30 MHz. There is also a 0-100 bandspread scale. Features include: ¼" Headphone Jack, BFO, Standby, built-in 5 inch speaker and illuminated dial. There is a built-in AM band Ferrite antenna, telescopic whip and external antenna terminals.

The circuit consists of: 12BE6 Converter, 12BA6 IF Amp/BFO, 12AV6 Audio Amp/AVC, 50C5 Audio Power Amp plus one selenium rectifier.

A model Hallicrafters S-120A was introduced in 1967 as a successor.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.55-30 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
Built-in sweep
Impedance
50/600Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
30 W @ 110 VAC
TX
-

Physical

Dimensions (w×h×d)
343 × 149 × 222 mm (13.50 × 5.87 × 8.74 in)
Weight
4.60 kg (10.1 lbs)
Form factor
Base Station
Manufactured
Between 1960 and 1963

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2755
MPN
HALLICRAFTERS-S-000120

Manuals, diagrams and brochures

S-120 PDF - 366.0 kB, submitted by Billy Cox

Upload relevant documents

Reviews & stories

Rating Title Submitted
Fairly good 14 years ago by smeezekitty

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters S-120. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters S-120 is around:

  • USD 1.00 ~ USD 5.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 51.00 Used / Good eBay
2010 USD 34.77 Used / Okay eBay
2002 USD 40.00 Used / Okay smeezekitty
