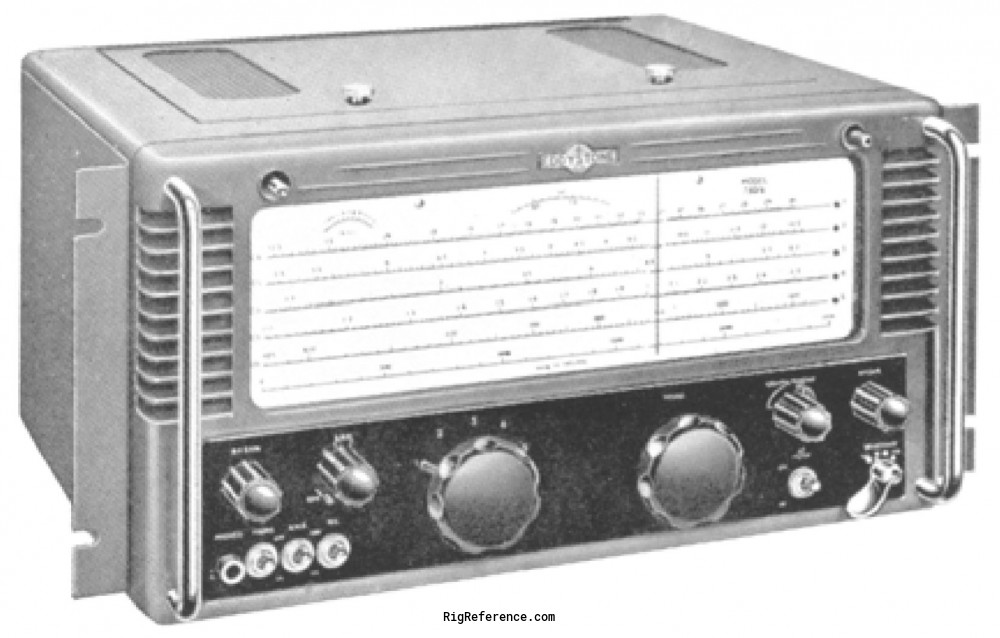

The Eddystone 730/8 is a standard Eddystone 730/4 with facilities for crystal control of the Local Oscillator Stage, and coverage of the 200-420 kHz band instead of the usual 480-1100 kHz.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up
Tuning steps
Continuous
Memories
None

Receiver

RX-range
0.2-0.42 / 1.1-30 MHz in 5 bands
Modulations
AM   CW
Sensitivity
AM: 5 µV
CM 1-2 µV
Selectivity
1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)
Filters
500 Hz switchable crystal filter
Receiver system
Superheterodyne
IF-frequencies
450 kHz
Image rejection
?
Audio output
1 W

Connections

Antenna
-
Impedance
70/80Ω
Other
-

Electrical

Power requirements
Mains (100-125 or 200-250 V AC) or external PSU
Current drain RX
80 W
TX
-

Physical

Dimensions (w×h×d)
426 × 222 × 350 mm (16.77 × 8.74 × 13.78 in)
Weight
25.80 kg (56.9 lbs)
Form factor
Base Station
Manufactured
Between 1959 and 196x in Great Britain

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
6359
MPN
EDDYSTONE-000730/8

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone 730/8. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Eddystone 730/8 is around:

  • GBP 2.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1959 GBP 235.00 New / Mint RigReference
