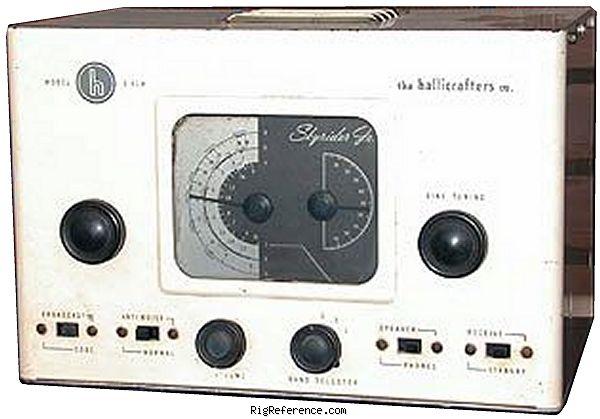

The W in the model name refers to the white cabinet color. A maroon version was reportedly also produced, designated the Hallicrafters S-41G (gray). Both models are electrically and mechanically identical to the EC-1A/B with the main differences being color and knob style. These models where produced in 1945/6, just prior to the introduction of the S38.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.545-2 / 2-7.5 / 7.5-30.5 MHz
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- 455 kHz
- Image rejection
- ?
- Audio output
- Internal speaker
Connections
- Antenna
- Clamps / screws
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 290 × 187 × 182 mm (11.42 × 7.36 × 7.17 in)
- Weight
- 4.70 kg (10.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1945 and 1946 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2780
- MPN
- HALLICRAFTERS-S-000041W-SKYRIDER-JR.
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters S-41W Skyrider Jr.. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hallicrafters S-41W Skyrider Jr. in Good condition is around:
- USD 22 ~ USD 47
These estimates are based on the following prices:
