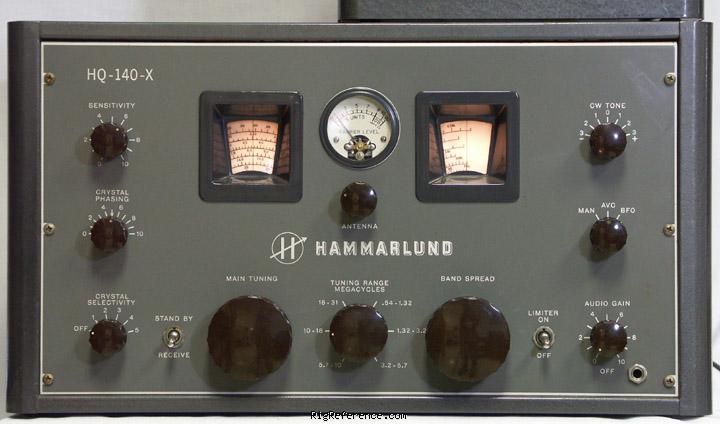

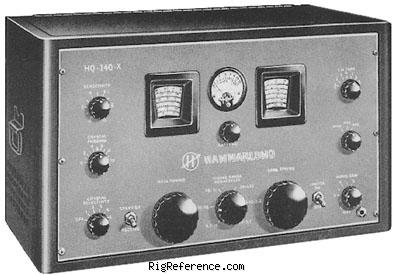

The Hammarlund HQ-140-X general coverage receiver tunes shortwave in four bands: .54-1.32, 1.32-3.2, 3.2-5.7, 5.7-10, 10-18 and 18-31 MHz. Bandspread: 80, 40, 20, 15 and 10 meters Other enhancements include: antenna trimmer, noise limiter, RF gain, S-meter, stand-by and AVC on/off. This radio does not have a built in speaker. There are speaker terminals on the rear panel. The HQ-140-X was the successor to the HQ-129-X.

The later model Hammarlund HQ-140-XA featured better sensitivity, smoother tuning and better dial accuracy.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.54-31 MHz
Modulations
AM   CW
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
Clamps / screws
Impedance
?
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
511 × 279 × 343 mm (20.12 × 10.98 × 13.50 in)
Weight
21.30 kg (47.0 lbs)
Form factor
Base Station
Manufactured
Between 1953 and 1956 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2840
MPN
HAMMARLUND-HQ-000140X
