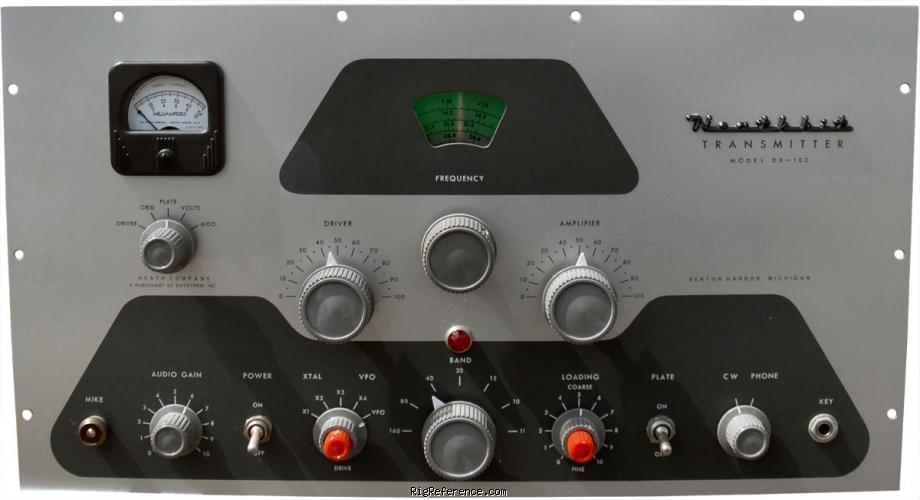

The Heathkit DX-100 is a 10-160 meters transmitter. RF output is AM: Max 125 W, CW: Max 140 W. Power requirements are Mains. Dimensions are 350 × 526 × 406 mm.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- AM CW
- RF-output
- AM: Max 125 W, CW: Max 140 W
Connections
- Antenna
- -
- Impedance
- 50/600Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 526 × 350 × 406 mm (20.71 × 13.78 × 15.98 in)
- Weight
- 45.36 kg (100.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1955 and 1957 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2907
- MPN
- HEATHKIT-DX-000100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit DX-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Heathkit DX-100 in Good condition is around:
- USD 92
These estimates are based on the following prices:
