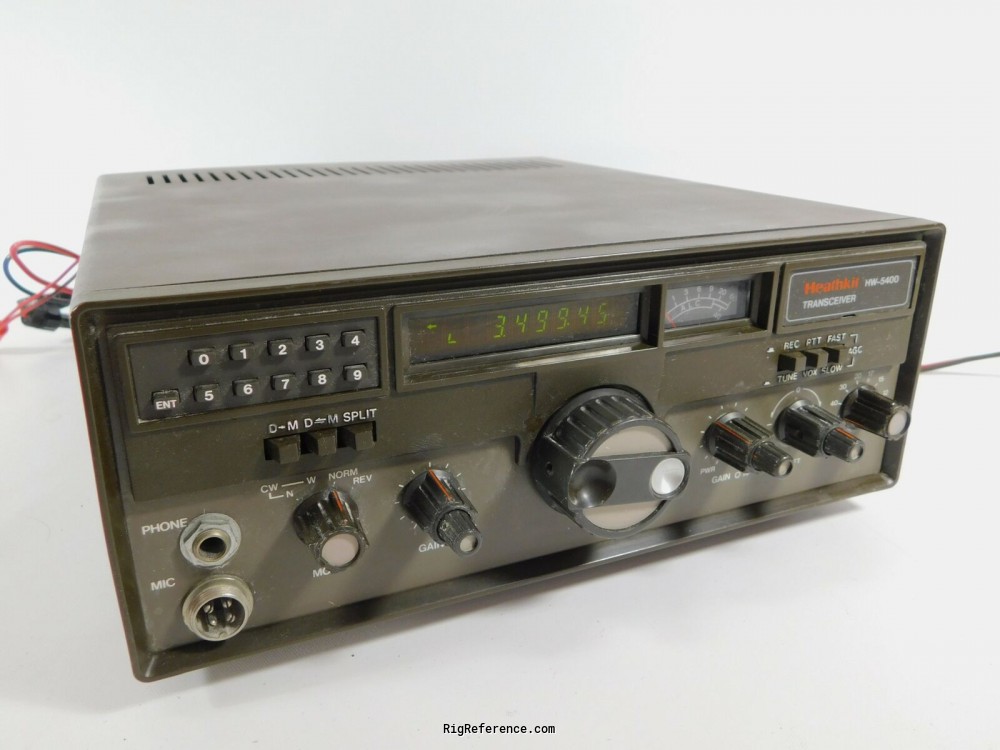

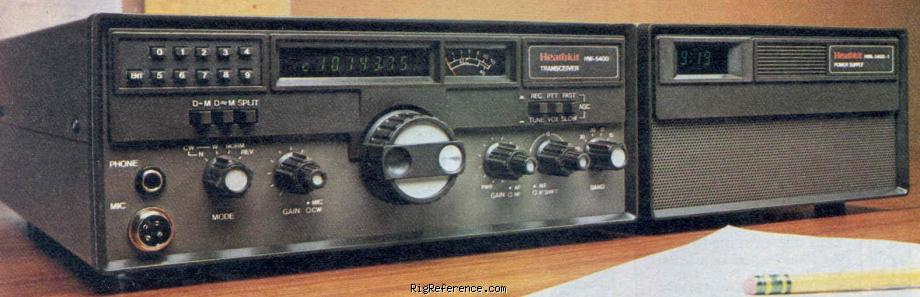

Heathkit HW-5400

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

50 Hz / 1 / 1.25 / 25 kHz

Memories

?

Receiver

RX-range

10-80 m

Modulations

CW   SSB

Sensitivity

0.35 µV (10 dB S+N/N)

Selectivity

?

Filters

?

Receiver system

Single conversion

IF-frequencies

1st: 8.830 MHz

Image rejection

?

Audio output

2 W into 4 ohm @ 10% THD

Transmitter

TX-range

10-80 m

Modulations

CW   SSB

RF-output

100 W (80 W on 10m)

Connections

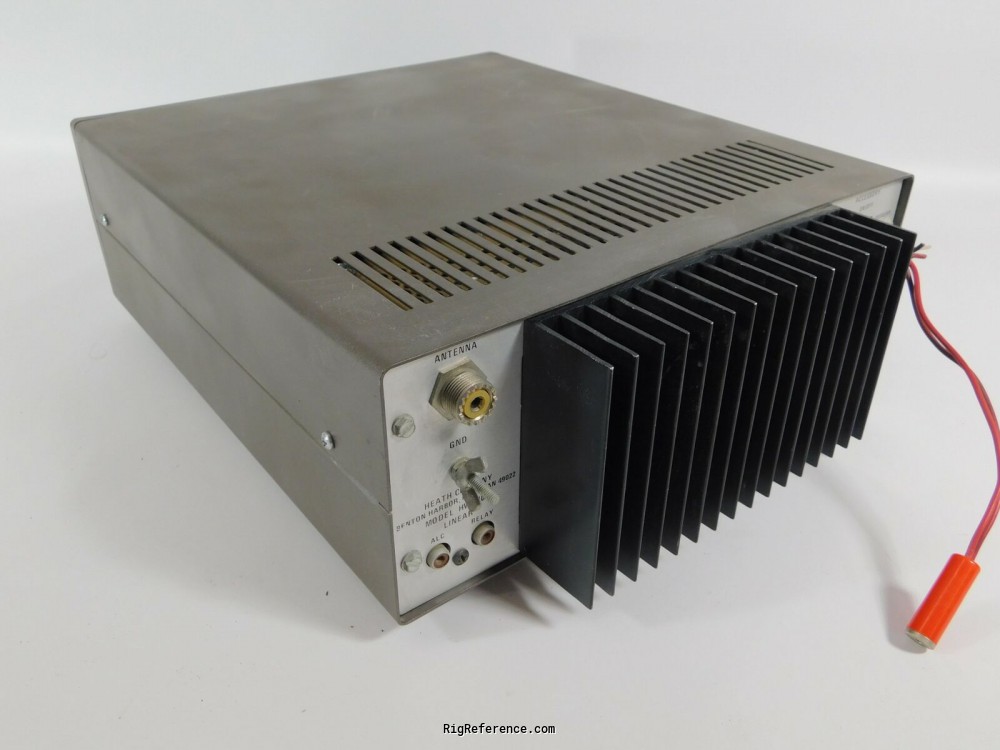

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

?

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

292 × 127 × 355 mm (11.50 × 5.00 × 13.98 in)

Weight

10.90 kg (24.0 lbs)

Form factor

Base Station

Manufactured

Between 1983 and 1984 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2928

MPN

HEATHKIT-HW-005400

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-5400. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Heathkit HW-5400 is around:

• USD 224 ~ USD 415

This estimate is based on similar equipment and may not reflect the exact value of this model.
