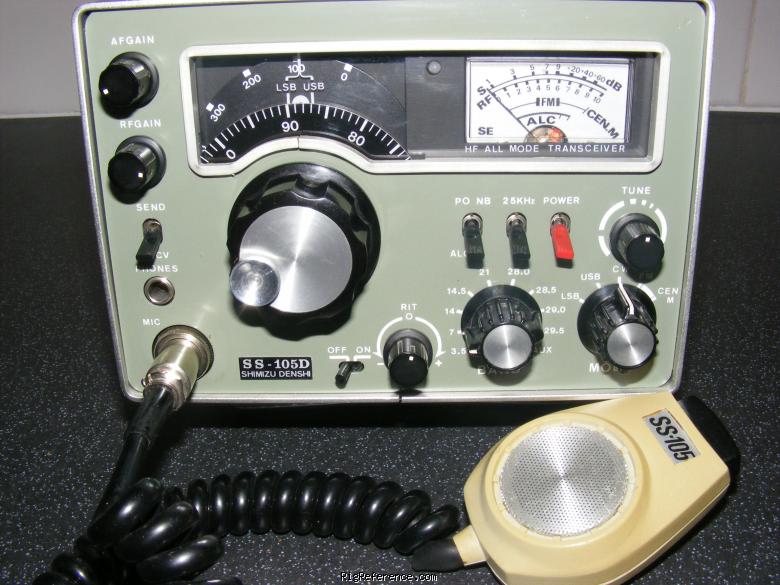

The Shimizu Denshi SS-105S was offered as a "semi kit". The main board was pre-built and pre-aligned while the final assembly was done by the user.

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
1 kHz
Memories
?

Receiver

RX-range
80-10 m
Modulations
FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
80-10 m
Modulations
FM   CW   USB   LSB
RF-output
100 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1982 and 1984 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
RIT
CW filter optional
FM optional
Noise filter optional
Accessories
-
RigReference ID
5907
MPN
SHIMIZU-DENSHI-SS-000105D

Manuals, diagrams and brochures

Shimizu Denshi SS-105 Manual PDF - Unknown size, submitted by RigReference
Shimizu Denshi SS-105 Assembly manual PDF - Unknown size, submitted by RigReference
Shimizu Denshi SS-105S Schematic diagram PDF - Unknown size, submitted by RigReference
