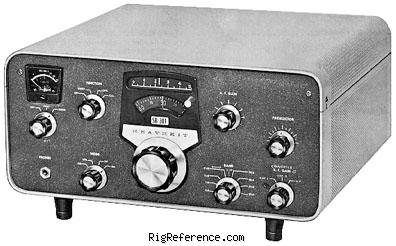

The Heathkit SB-301 is a base station receiver covering 10-80 m. Tuning steps are continuous. It requires mains power and weighs 7.7 kg. Dimensions are 169 × 377 × 340 mm.

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
Continuous
Memories
?

Receiver

RX-range
10-80 m
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
377 × 169 × 340 mm (14.84 × 6.65 × 13.39 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station
Manufactured
Between 1966 and 1970 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2942
MPN
HEATHKIT-SB-000301

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SB-301. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Heathkit SB-301 in Good condition is around:

  • USD 124 ~ USD 163

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2001 USD 150.00 Used / Good ZedderBRL
2001 USD 130.00 Used / Good ZedderBRL
1983 USD 289.00 Used / Mint Mark
