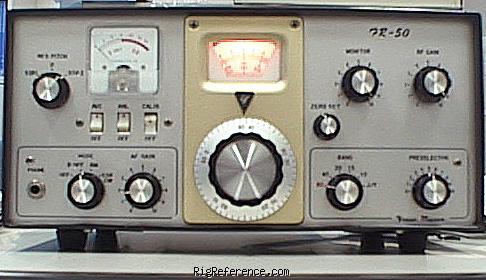

The Yaesu FR-50 is a HF Receiver covering 10-80 m. It utilizes an 8 tube receiver system and has image rejection better than 50 dB. The radio weighs 8 kg and measures 153 × 334 × 262 mm. It requires Mains power.

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
10-80 m
Modulations
AM   CW   SSB
Sensitivity
AM: Better than 1 µV (10 dB S/N)
SSB/CW: Better than 0.5 µV (10 dB S/N)
Selectivity
+/- 1.5 kHz (-6 dB), +/-5 kHz (-50 dB)
Filters
?
Receiver system
8 tubes
IF-frequencies
?
Image rejection
Better than 50 dB
Audio output
?

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
N/A
TX
-

Physical

Dimensions (w×h×d)
334 × 153 × 262 mm (13.15 × 6.02 × 10.31 in)
Weight
8.00 kg (17.7 lbs)
Form factor
Base Station
Manufactured
Between 1966 and 196x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4214
MPN
YAESU-FR-000050

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FR-50. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Yaesu FR-50 is around:

  • USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
