Frequency range

RX-range
144-146 MHz (Europe)
144-148 MHz (USA)
RX: 118-174 MHz
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
RX: 118-174 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
0.18 µV (12 dB SINAD)
Selectivity
15 kHz (-6 dB), 30 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
>60 dB
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 50 W, Medium: 10 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
0.8-1 A
TX
Max 10.5 A

Physical

Dimensions (w×h×d)
?
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 1995 and 1998 in Japan
MPN
ICOM-IC-002000H

Other features

Memories
60 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS encoder (CTCSS decoder option)
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-2000H user manuals on eBay #ad

Reviews & stories

IC 2000 H

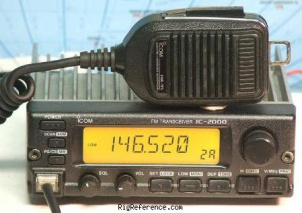

ICOM IC-2000H, Mobile VHF Transceiver

This radio is a very good radio..
I purchased it as my first 2 meter rig in 1995.
I have had many 2 meter and 70cm rigs and I have found the 2000H to be my favorite radio.
Since I have owned it I had it opened up to transmit through 174 MHZ...I did this because I was a EMA member and needed a VHF radio in my car. I no longer TX above 2 meters but it is hand to use in emergencies only above 2 meters.
I also used it for several years as my simplex repeater and as a packet node radio. Now I just use it to rag chew on the local 2 meter repeaters and use it for SKYWARN.

Overall I find the IC 2000 H as an excellent radio and I am always looking to buy a couple more when I see them.

73

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in
USD 0.00
