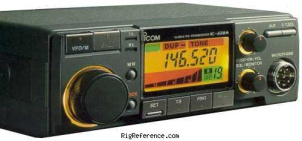

ICOM IC-228E Mobile VHF Transceiver
Frequency range
- RX-range
- 138-174 MHz
- TX-range
- 144-146 MHz
- HAM bands
- 2m
- Stability
- -
- Tuning steps
- -
- Filters
- -
Receiver
- Modulations
- FM
- Sensitivity
- -
- Selectivity
- -
- Receiver system
- -
- IF-frequencies
- -
- Image rejection
- -
- Audio output
- -
Transmitter
- Modulations
- FM
- RF-Output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 800 mA max
- TX
- 6 A max
Physical
- Dimensions (w×h×d)
- 140 × 50 × 137 mm (5.51 × 1.97 × 5.39 in)
- Weight
- 850 gr (1.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1988 and 1990 in Japan
- MPN
Other features
- Memories
- 20 channels in 1 bank(s)
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
