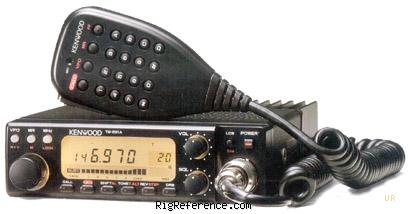

The Kenwood TM-231A combines high performance receiver and transmitter specifications with easy-to-use features. There are 20 multi-function memory channels plus 1 call channel, and all can be used to store transmit and receive frequencies as well as repeater and signaling data. The TM-231A transmits on 2 meters with three output power levels: 5/10/50 watts. Extended receive allows reception from 138 to 174 MHz. You also get auto-power off, built-in CTCSS encode, time-out timer, auto repeater offset and easy to read LCD. Frequency steps are: 5, 10, 15, 20, 12.5, and 25 kHz.
A European version exists in the form of the Kenwood TM-231E.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- Max 700 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1989 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5444
- MPN
- KENWOOD-TM-000231A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-231A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-231A is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
