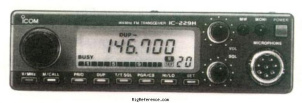

ICOM IC-229H Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
136-174 MHz
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
HAM bands
-
Stability
± 10 p.p.m. (-10 °C ~ +60 °C)
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 1000 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
< 0.16 µV (12 dB SINAD)
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 17.2 MHz
2nd: 455 kHz
Image rejection
> 60 dB
Audio output
2.4 W @ 10% THD into 8 ohm

Transmitter

Modulations
FM
RF-Output
High: 50 W, Low 3: 25 W, Low 2: 10 W, Low 1: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 0.5 A
TX
Max 10.5 A

Physical

Dimensions (w×h×d)
140 × 40 × 155 mm (5.51 × 1.57 × 6.10 in)
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 1990 and 19xx
MPN

Other features

Memories
20 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
PLL IC: PLL2001
Accessories
-
