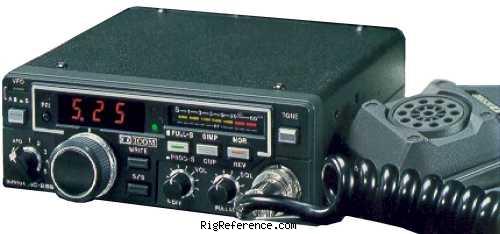

The ICOM IC-25E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit frequencies. Tuning steps are selectable at 5 / 25 kHz. The receiver system utilizes double conversion superheterodyne with IF frequencies of 1st: 19.6 MHz and 2nd: 455 kHz. RF output is selectable at High: 25 W or Low: 1 W. It features 1 memory bank with 5 channels. Power requirements are 13.8V DC. Current drain in receive mode is 600 mA max, and 4.8 A max in transmit mode. Dimensions are 50 × 140 × 177 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 25 kHz
- Memories
- 5 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 19.6 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 600 mA max
- TX
- 4.8 A max
Physical
- Dimensions (w×h×d)
- 140 × 50 × 177 mm (5.51 × 1.97 × 6.97 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1981 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3019
- MPN
- ICOM-IC-000025E
Manuals, diagrams and brochures
- IC-25A E Maintenance Manual.PDF 61E4BDBDBB7080.37582693 PDF - 13.22 MB, submitted by Merle Schnick
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-25E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-25E in Good condition is around:
- EUR 132
These estimates are based on the following prices:
