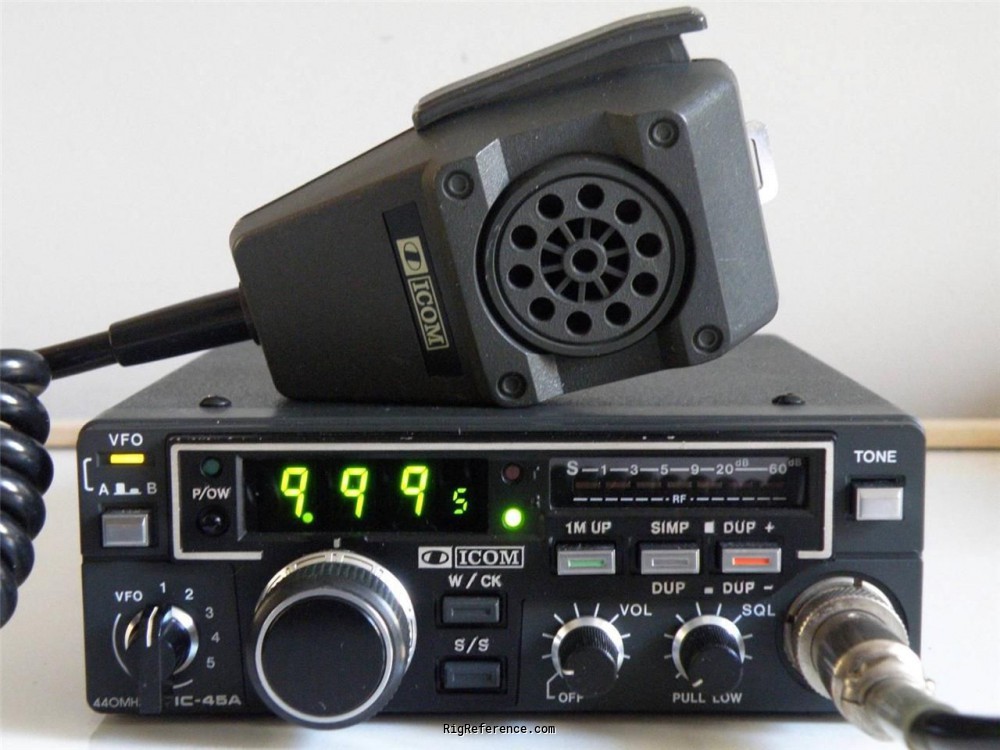

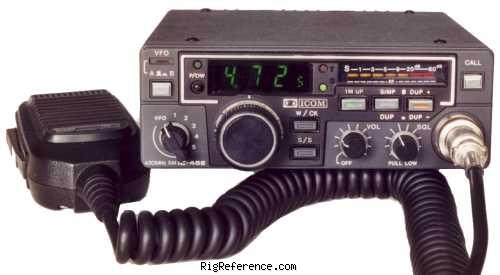

Microcomputer based 5 kHz step Digital PLL synthesizer. Independent Dual VFO Capability.

General characteristics

HAM bands
70cm
Frequency stability
± 0.001%
Tuning steps
5 / 25 kHz
Memories
5 channels in 1 bank(s)

Receiver

RX-range
440-450 MHz
Modulations
FM
Sensitivity
≤ 0.3 µV (12 dB SINAD)
≤ 0.4 µV (20 dB noise quieting)
Selectivity
7.5 kHz (-6 dB), 15 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
21.8 MHz / 455 kHz
Image rejection
>60 dB
Audio output
2 W

Transmitter

TX-range
440-450 MHz
Modulations
FM
RF-output
High: 10 W, Low: 1 W

Connections

Antenna
N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
500-700 mA
TX
1.7-3.5 A

Physical

Dimensions (w×h×d)
140 × 50 × 177 mm (5.51 × 1.97 × 6.97 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Mobile
Manufactured
Between 1983 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3094
MPN
ICOM-IC-000045A

Manuals, diagrams and brochures

Icom IC-45A/E Instruction Manual PDF - 3.57 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-45A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-45A is around:

  • USD 49.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 49.95 Used / Good eBay
