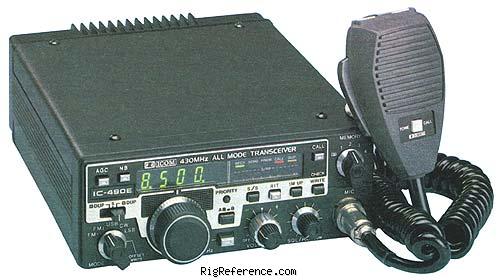

ICOM IC-490E

General characteristics

HAM bands

70cm

Frequency stability

?

Tuning steps

FM: 1 / 5 / 25 kHz, SSB/CW: 0.1 kHz

Memories

4 channels in 1 bank(s)

Receiver

RX-range

430-440 MHz

Modulations

FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 39380 kHz
2nd: 1075 kHz

Image rejection

?

Audio output

internal speaker

Transmitter

TX-range

430-440 MHz

Modulations

FM   CW   SSB

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

3.6 A max

Physical

Dimensions (w×h×d)

170 × 64 × 218 mm (6.69 × 2.52 × 8.58 in)

Weight

2.60 kg (5.7 lbs)

Form factor

Mobile

Manufactured

Between 1982 and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual VFO's. Scanning

Accessories

-

RigReference ID

3104

MPN

ICOM-IC-000490E
