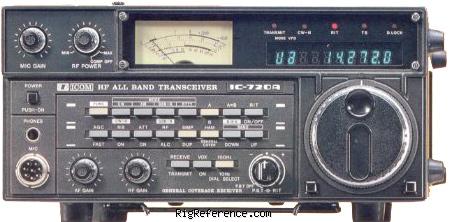

The ICOM IC-720 is a 10-160 m + WARC transceiver. RF output is 100 W. Power requirements are 13.8V DC. Current drain in receive is 900 mA and max 20 A in transmit. Dimensions are 111 × 241 × 311 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 900 mA
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 241 × 111 × 311 mm (9.49 × 4.37 × 12.24 in)
- Weight
- 7.50 kg (16.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1980 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3136
- MPN
- ICOM-IC-000720
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-720. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-720 in Good condition is around:
- GBP 188
These estimates are based on the following prices:
