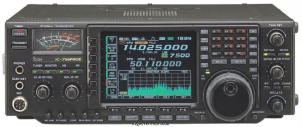

The ICOM IC-756 Pro II is a desktop HF/VHF transceiver. It covers a frequency range of 0.03-60 MHz for reception and 10-160 m + WARC/50-54 MHz for transmission. It features an RF output of SSB/CW/FM/RTTY: 5-100/5-100 W, AM: 5-40/5-40 W. The IC-756 Pro II has a 32 bit IF-DSP, built-in auto-AT (HF: 16.7-150 ohms / 6 m: 20-125 ohms), built-in RTTY demodulator and keyer, and twin RX. It requires 13.8V DC +/- 15% power and weighs 9.6 kg. Dimensions are 111 × 340 × 285 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-60 MHz
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- AM (10 dB S/N)
0.5-1.8 MHz: 13 µV
1.8-30 MHz: 2 µV (Pre-amp 1 on)
50-54 MHz: 1 µV
FM (12 dB SINAD)
28-30 MHz: 0.5 µV (Pre-amp 1 on)
50-54 MHz: 0.32 µV (Pre-amp 2 on)
SSB/CW/RTTY (10 dB S/N)
1.8-30 MHz: 0.16 µV (Pre-amp 1 on)
50-54 MHz: 0.13 µV (Pre-amp 2 on) - Selectivity
- AM (BW=6 kHz)
>6 kHz (-6 dB), <15 kHz (-60 dB)
FM (BW=15 kHz)
>12 kHz (-6 dB), <20 kHz (-60 dB)
SSB/RTTY (BW=2.4 kHz)
>2.4 kHz (-6 dB), <3.6 kHz (-60 dB)
CW (BW=500 H - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC/50-54 MHz
- Modulations
- AM FM CW SSB RTTY
- RF-output
- SSB/CW/FM/RTTY: 5-100/5-100 W, AM: 5-40/5-40 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- Max 3.5 A
- TX
- Max 23 A
Physical
- Dimensions (w×h×d)
- 340 × 111 × 285 mm (13.39 × 4.37 × 11.22 in)
- Weight
- 9.60 kg (21.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2002 and 2002 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 32 bit IF-DSP. Built-in auto-AT (HF: 16.7-150 ohms / 6 m: 20-125 ohms) Built-in RTTY demodulator and keyer. Twin RX
- Accessories
- -
- RigReference ID
- 3162
- MPN
- ICOM-IC-000756-PRO-II
Manuals, diagrams and brochures
- IC-756PRO2 PDF - 1.86 MB, submitted by Aben Erwin Steven
- Ic756PRO2 Brochure (2) PDF - 1.97 MB, submitted by Aben Erwin Steven
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Just a great rig!! | 2 years ago by edcoleup | |
| Great Rig for the money! | 13 years ago by N7RD | |
| Great Bang for the buck | 15 years ago by ke5zgi |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-756 Pro II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-756 Pro II in Good condition is around:
- EUR 1,100
- USD 1,275 ~ USD 1,350
- GBP 752
These estimates are based on the following prices:
