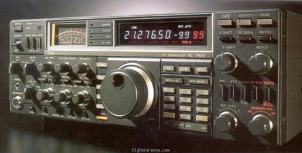

ICOM IC-765

Desktop Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-765 rigs and spare parts on eBay Find the ICOM IC-765 on Amazon
We receive a small fee when you buy through these links, thank you!

The Icom IC-765 is a full featured, multi-mode HF transceiver for the dedicated DX enthusiast. It operates from 160 to 10 meters and features a high performance 100 kHz to 30 MHz general coverage receiver built in. RF power is 10 to 100 watts SSB/CW/RTTY modes (10 to 40 watts AM). The 765 has sophisticated capabilities such as: dual digital VFOs, multi-function analog meter, all-mode squelch, Notch, Passband Tuning, RIT/XIT, pre-amp keypad and 20 dB attenuator. You also get 99 memories. The two color fluorescent digital display is easy to read. Serious CW operators will appreciate the built-in electronic keyer, full and semi break-in capability. The rear panel has an SO-239 antenna jack plus a receive only RCA phono jack. The 765 has a built in antenna tuner and this rig operates from a built-in power supply.

Frequency range

RX-range
0.1-30 MHz
TX-range
160-10 m + WARC
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
SSB/CW: 10~100 W, AM: 10~40 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
Weight
17.50 kg (38.6 lbs)
Form factor
Base Station
Manufactured
Between 199x and 19xx
MPN
ICOM-IC-000765

Other features

Memories
99 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Built-in auto-AT
Accessories
?

Manuals, diagrams and brochures

ICOM IC-765 Instruction Manual.pdf submitted by RigReference

Upload relevant documents

Show other documents.
Find the ICOM IC-765 user manuals on eBay #ad

Reviews & stories

Astonishing transceiver

ICOM IC-765, Desktop Shortwave Transceiver

This transceiver was made in the 90's, but it outperforms a lot of today transceivers.
If you don't like the sound of transceiver with DSP, just buy one ! (hard to find today, everybody keep them)
It has one of the best receivers ever made, it has 4 IF stages.

Written by f4dfr on Dec 10, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 900.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-765. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-765 is around:

  • USD 446.00
Year Historic price Condition Submitted by
2010 USD 900.00 Used / Good f4dfr
