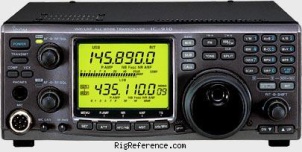

ICOM IC-910D

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

212 channels in 1 bank(s)

Receiver

RX-range

136-174 / 420-480 MHz
1240-1320 MHz (with UX-910 option)

Modulations

FM   N-FM   CW   SSB

Sensitivity

FM: <0.18 µV (12 dB SINAD)
SSB/CW: <0.11 µV (10 dB S/N)

Selectivity

FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 18 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW-N: 0.5 kHz (-6 kHz), 1.34 kHz (-60 dB)

Filters

?

Receiver system

Single- double- or triple conversion superheterodyne, depending on band and mode IF frequency matrix

IF-frequencies

?

Image rejection

2m/70cm: >60 dB 23cm: >50 dB

Audio output

?

Transmitter

TX-range

144-146 / 430-440 MHz (Asia)
1260-1300 MHz/10 W (with UX-910 option)

Modulations

FM   N-FM   CW   SSB

RF-output

5-50 / 5-50 W, 1-10 W on 23cm (with UX-910 option)

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC +/-15%

Current drain RX

Max 3.5 A (with UX-910)

TX

Max 23 A

Physical

Dimensions (w×h×d)

241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)

Weight

4.50 kg (9.9 lbs) without UX-910

Form factor

Base Station

Manufactured

Between 2000 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual 9K6 packet ports and built-in keyer. Twin RX

Accessories

-

RigReference ID

3180

MPN

ICOM-IC-000910D

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-910D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-910D in Good condition is around:

• USD 660
• EUR 1,698

Price History Chart

These estimates are based on the following prices:
