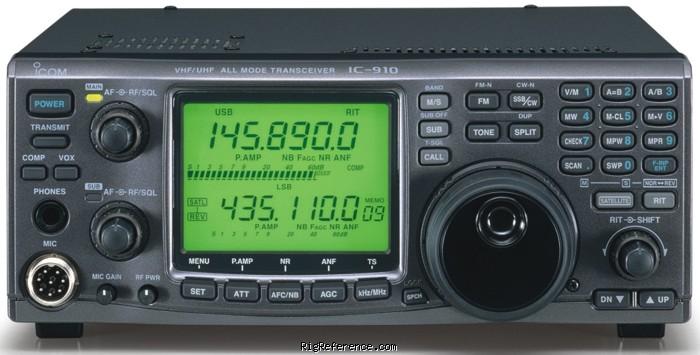

ICOM IC-910H

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

212 channels in 1 bank(s)

Receiver

RX-range

136-174 / 420-480 MHz
1240-1320 MHz (with UX-910 option)

Modulations

FM   N-FM   CW   SSB

Sensitivity

FM: <0.18 µV (12 dB SINAD)
SSB/CW: <0.11 µV (10 dB S/N)

Selectivity

FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 18 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW-N: 0.5 kHz (-6 kHz), 1.34 kHz (-60 dB)

Filters

?

Receiver system

Single- double- or triple conversion superheterodyne, depending on band and mode IF frequency matrix

IF-frequencies

?

Image rejection

2m/70cm: >60 dB 23cm: >50 dB

Audio output

?

Transmitter

TX-range

144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA)
1240-1300 MHz/10 W (with UX-910 option)

Modulations

FM   N-FM   CW   SSB

RF-output

5-100 / 5-75 W, 1-10 W on 23cm (with UX-910 option)

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC +/-15%

Current drain RX

Max 3.5 A (with UX-910)

TX

Max 23 A

Physical

Dimensions (w×h×d)

241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)

Weight

4.50 kg (9.9 lbs) without UX-910

Form factor

Base Station

Manufactured

Between 2000 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual 9K6 packet ports and built-in keyer. Twin RX

Accessories

-

RigReference ID

3181

MPN

ICOM-IC-000910H

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-910H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-910H is around:

• EUR 272.00 ~ EUR 181.00
• USD 117.00 ~ USD 405.00
