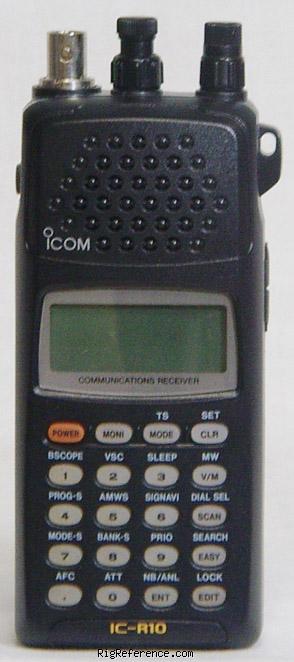

ICOM IC-R10

Handheld HF/VHF/UHF Scanner / receiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
0.1-100 kHz

Receiver

RX-range
0.5-1300 MHz
Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
AM
0.5-5 MHz: 1.6 µV
5-200 MHz: 1.0 µV
200-340 MHz: 1.6 µV
340-700 MHz: 1.4 µV
700-800 MHz: 2.0 µV
800-1300 MHz: 1.6 µV
FM
0.5-5 MHz: 0.5 µV
5-200 MHz: 0.32 µV
200-340 MHz: 0.45 µV
340-700 MHz: 0.35 µV
700-800 MHz: 0.79 µV
800-1300 MHz: 0.5 µV
W-FM
75-200 MHz: 1.0 µV
200-340 MHz: 2.2 µV
340-700 MHz: 1.3 µV
700-800 MHz: 2.0 µV
800-900 MHz: 1.6 µV
SSB/CW
0.5-5 MHz: 0.4 µV
5-200 MHz: 0.25 µV
200-340 MHz: 0.4 µV
340-700 MHz: 0.32 µV
700-800 MHz: 0.63 µV
800-1300 MHz: 0.4 µV
Selectivity
AM/FM: >15 kHz (-6 dB)
W-FM: >150 kHz (-6 dB)
SSB: >4 kHz (-6 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
4.8-6V DC (4R6/AA) or 4.8-16V DC external
Current drain RX
38-180 mA
TX
-

Physical

Manufactured
Between 1996 and 1999 in Japan
Dimensions (w×h×d)
58 × 130 × 31 mm (2.28 × 5.12 × 1.22 in)
Weight
310 gr (10.9 oz)
Form factor
Handheld

Other features

Memories
1000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CI-V. VSC. Bandscope
Accessories
?
MPN
ICOM-IC-R000010

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-R10 user manuals on eBay

Reviews & stories

good quality handheld

ICOM IC-R10, Handheld HF/VHF/UHF Scanner / receiver

Wideband coverage
500khz-1300mhz
Ssb
Rf gain
Noise blanker
Auto noise limiter
Backlight
Memories
Basic bandscope
Good quality rotary controls
Afc control
Performance sensitivity on air and probably better than other leading handhelds,
Also switch on afc then scan vhf bands,really neat watching scanner pinpoint active channels,
Bad points,scanning speed painfully slow,bandscope range too limited,no signal meter.

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2001
GBP 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-R10 is around:

  • USD 17.00 ~ USD 117.00
Year Historic price Condition Submitted by
2010 USD 295.00 Used / Mint eBay
1999 USD 360.00 New / Mint n0nab
