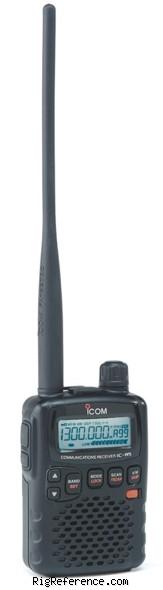

ICOM IC-R5

General characteristics

HAM bands

?

Frequency stability

6 ppm (-10C to +60C)

Tuning steps

5 / 6.25 / 8.33* / 9* / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz

Memories

1250 channels in 1 bank(s) @ 15 channels/second

Receiver

RX-range

0.150-1310 MHz (cellular blocked in USA; some ranges blocked in France)

Modulations

AM   FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 266.7 MHz
2nd: 19.65 MHz
3rd: 450 kHz

Image rejection

?

Audio output

100mW at 10% distortion, 8 ohms

Connections

Antenna

SMA

Impedance

50 Ω

Other

-

Electrical

Power requirements

2.4-3V DC (2R6/AA) or max 6V DC (5%) external

Current drain RX

41 mA (standby), 120 mA (typical), 170 mA (max)

TX

-

Physical

Dimensions (w×h×d)

58 × 86 × 27 mm (2.28 × 3.39 × 1.06 in) excluding antenna

Weight

185 gr (6.5 oz)

Form factor

Handheld

Manufactured

Between 2002 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS & DTCS
PC-programmable via USB
Data-cloning
Build-in battery charger
Rotary frequency dial
Ferrite bar antenna for MW
Frequency shift for duplex transmissions

Accessories

-

RigReference ID

3218

MPN

ICOM-IC-R000005

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-R5 in Good condition is around:

• USD 176 ~ USD 343
• EUR 111 ~ EUR 134

Price History Chart

These estimates are based on the following prices:
