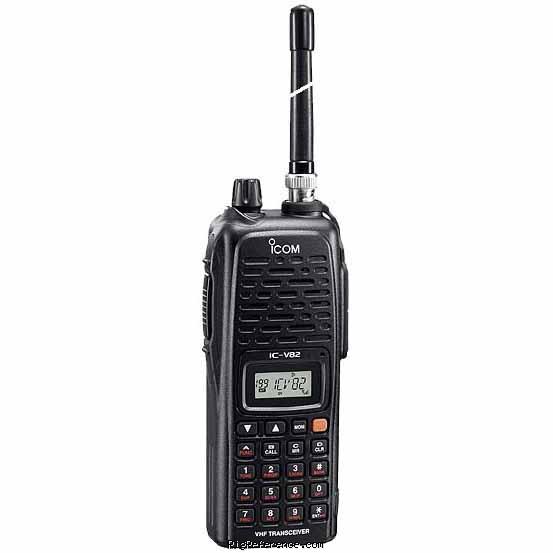

The ICOM IC-V82 has 6 scan edge channels in three sets, and 1 "call" channel, in addition to 10 scan banks (marked A-J). The other 200 memory channels can be dynamically assigned to any scan bank, and the size of the scan bank is set by the user.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
?
Memories
207 channels in 10 bank(s)

Receiver

RX-range
144-146 MHz
Modulations
FM   N-FM   GMSK
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-147.995 MHz
Modulations
FM   N-FM   GMSK
RF-output
High: 7 W, Medium: 4 W, Low: 0.5 W

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
6-10.3V DC
Current drain RX
30-250 mA
TX
1-2 A

Physical

Dimensions (w×h×d)
54 × 140 × 37 mm (2.13 × 5.51 × 1.46 in)
Weight
390 gr (13.8 oz) with ABP-222N
Form factor
Handheld
Manufactured
Between 2004 and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS / DTCS
GPS option
Accessories
-
RigReference ID
3258
MPN
ICOM-IC-V000082

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Number one worldwide.... 7 years ago by deactivated user
great radio 8 years ago by motorsportsmedic

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-V82. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-V82 is around:

  • USD 90.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2012 USD 150.00 New / Mint motorsportsmedic
