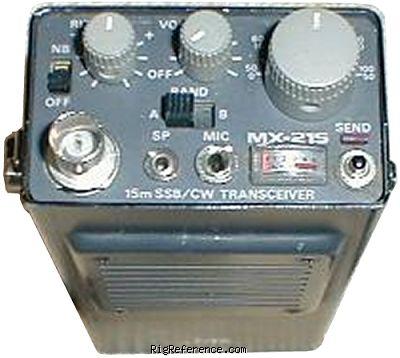

The JIM MX-21S is a handheld transceiver. It covers the 15 m band with 50 KHz per crystal for both reception and transmission. The RF output is 2 W. It requires 9.5V DC power and draws 68 mA in receive mode and a maximum of 600 mA in transmit mode. Dimensions are 142 × 66 × 39 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 15 m (50 KHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 15 m (50 KHz per XTAL)
- Modulations
- CW SSB
- RF-output
- 2 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.5V DC
- Current drain RX
- 68 mA
- TX
- Max 600 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Handheld
- Manufactured
- Between 1983 and 2002 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3280
- MPN
- JIM-MX-000021S
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JIM MX-21S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the JIM MX-21S is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
